Bague de sertissage pour série PN

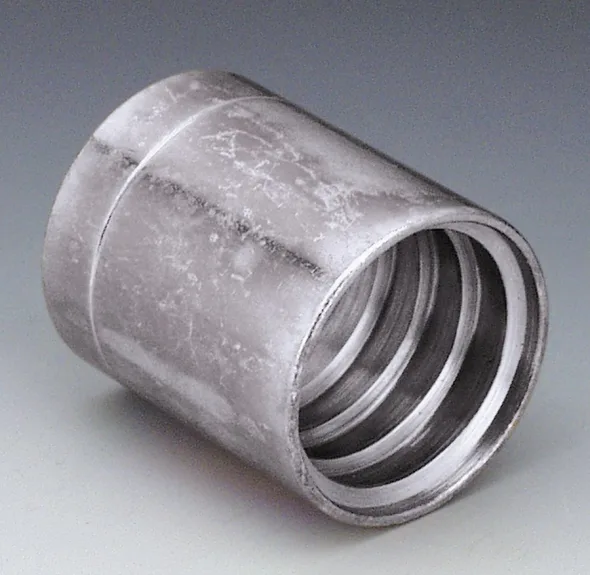

FERRULE 1-2 BRINS 1SN (NON-SKIVE) 1 / 4"
Code de groupe de produit: PHN106
| # produit | Diamètre intérieur boyau | Diamètre extérieur douille | Diamètre intérieur | Longueur | ||||
| (D1) | Douille (D3) | Douille (LF) | ||||||
| Code | mm | Po | mm | Po | mm | Po | mm | Po |
| PHN 106 | 6 | 1/4 | 19.6 | 0.77 | 11.4 | 0.45 | 30.2 | 1.19 |
| PHN 108 | 8 | 5/16 | 20.6 | 0.81 | 12.6 | 0.50 | 30.2 | 1.19 |
| PHN 110 | 10 | 3/8 | 23.2 | 0.91 | 14.2 | 0.56 | 32 | 1.26 |
| PHN 113 | 13 | 1/2 | 27.5 | 1.08 | 19 | 0.75 | 34 | 1.34 |
| PHN 116 | 16 | 5/8 | 31 | 1.22 | 22.3 | 0.88 | 37 | 1.46 |
| PHN 120 | 20 | 3/4 | 36 | 1.42 | 25 | 0.98 | 42.5 | 1.67 |
| PHN 125 | 25 | 1’’ | 42.8 | 1.69 | 30.5 | 1.20 | 50.5 | 1.99 |
| PHN 132 | 32 | 1-1/4 | 51 | 2.01 | 37.6 | 1.48 | 59 | 2.32 |
Modèles disponibles
| Code | grandeur |
|---|---|
| PHN106 | PHN106 |
| PHN108 | PHN108 |
| PHN110 | PHN110 |
| PHN113 | PHN113 |
| PHN116 | PHN116 |
| PHN120 | PHN120 |
| PHN125 | PHN125 |
| PHN132 | PHN132 |
