Filet métrique DIN L

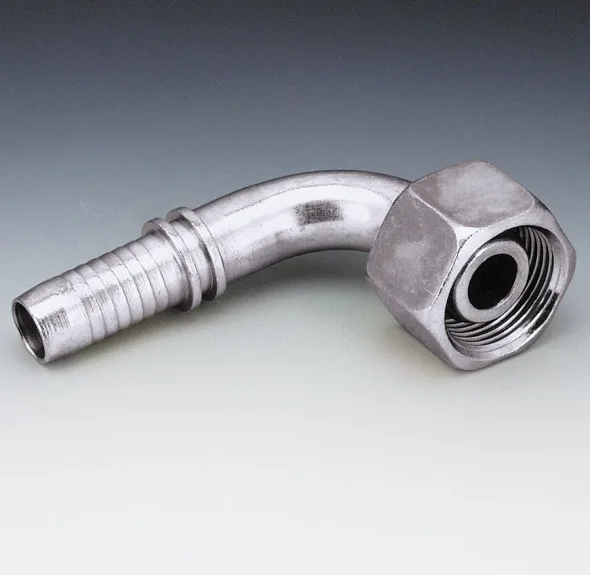

RACCORD 90° FEM MÉTRIQUE 06L X 1 / 4"
Code de groupe de produit: PN06AOL0490
PN AOL 90 (Femelle DIN L 90°+ O’ring)
|
# produit
|
Diamètre embout (DN) |
Dimension du Joint Torique (O’ring) |
Diamètre extérieur clef (S1) |
Filetage
(G1) |
Longueur Raccord (L1) |
Longueur Portée (L2) |
||||
|
Code |
mm |
Po |
mm |
mm |
Po |
Métrique |
mm |
Po |
mm |
Po |
|
PN 04 AOL 90 |
5 |
3/16 |
4.0 X 1.5 |
14 |
0.55 |
M 12 X 1.5 |
48.5 |
1.91 |
29 |
1.14 |
|
PN 04 AOL 06 90 |
5 |
3/16 |
6.5 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
49 |
1.93 |
33 |
1.30 |
|
PN 04 AOL 08 90 |
5 |
3/16 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
49 |
1.93 |
33 |
1.30 |
|
PN 06 AOL 04 90 |
6 |
1/4 |
4.0 X 1.5 |
14 |
0.55 |
M 12 X 1.5 |
57 |
2.24 |
30.5 |
1.20 |
|
PN 06 AOL 90 |
6 |
1/4 |
6.0 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
55 |
2.17 |
30.5 |
1.20 |
|
PN 06 AOL 90 L50 |
6 |
1/4 |
6.0 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
55 |
2.17 |
50 |
1.97 |
|
PN 06 AOL 90 L55 |
6 |
1/4 |
6.0 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
55 |
2.17 |
55 |
2.17 |
|
PN 06 AOL 08 90 |
6 |
1/4 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
55 |
2.17 |
33 |
1.30 |
|
PN06AOL0890L60 |
6 |
1/4 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
55 |
2.17 |
60 |
2.36 |
|
PN 06 AOL 10 90 |
6 |
1/4 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
62.5 |
2.46 |
32 |
1.26 |
|
PN 08 AOL 06 90 |
8 |
5/16 |
6.0 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
54 |
2.13 |
31.5 |
1.24 |
|
PN 08 AOL 90 |
8 |
5/16 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
58 |
2.28 |
31.5 |
1.24 |
|
PN 08 AOL 90 L36 |
8 |
5/16 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
58 |
2.28 |
36 |
1.42 |
|
PN 08 AOL 90 L42 |
8 |
5/16 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
58 |
2.28 |
42 |
1.65 |
|
PN 08 AOL 10 90 |
8 |
5/16 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
58 |
2.28 |
32.5 |
1.28 |
|
PN 10 AOL 08 90 |
10 |
3/8 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
63 |
2.48 |
40.5 |
1.59 |
|
PN 10 AOL 90 |
10 |
3/8 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
64 |
2.52 |
37 |
1.46 |
|
PN 10 AOL 90 L50 |
10 |
3/8 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
64 |
2.52 |
50 |
1.97 |
|
PN 10 AOL 90 L60 |
10 |
3/8 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
64 |
2.52 |
60 |
2.36 |
|
PN 10 AOL 90 L70 |
10 |
3/8 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
64 |
2.52 |
70 |
2.76 |
|
PN 10 AOL 90 L75 |
10 |
3/8 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
64 |
2.52 |
75 |
2.95 |
|
PN 10 AOL 13 90 |
10 |
3/8 |
12.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
71.5 |
2.81 |
41.5 |
1.63 |
|
PN 13 AOL 10 90 |
13 |
1/2 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
71.5 |
2.81 |
50.5 |
1.99 |
|
PN 13 AOL 90 |
13 |
1/2 |
12.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
72.5 |
2.85 |
41.5 |
1.63 |
|
PN 13 AOL 90 L60 |
13 |
1/2 |
12.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
88 |
3.46 |
60 |
2.36 |
|
PN 13 AOL 90 L77 |
13 |
1/2 |
12.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
72.5 |
2.85 |
77 |
3.03 |
|
PN 13 AOL 16 90 |
13 |
1/2 |
15.0 X 2.0 |
32 |
1.26 |
M 26 X 1.5 |
83.5 |
3.29 |
50.5 |
1.99 |
|
PN 16 AOL 13 90 |
16 |
5/8 |
12.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
87 |
3.43 |
50.5 |
1.99 |
|
PN 16 AOL 90 |
16 |
5/8 |
15.0 X 2.0 |
32 |
1.26 |
M 26 X 1.5 |
88 |
3.46 |
50.5 |
1.99 |
|
PN 16 AOL 90 L60 |
16 |
5/8 |
15.0 X 2.0 |
32 |
1.26 |
M 26 X 1.5 |
88 |
3.46 |
60 |
2.36 |
|
PN 16 AOL 90 L75 |
16 |
5/8 |
15.0 X 2.0 |
32 |
1.26 |
M 26 X 1.5 |
88 |
3.46 |
75 |
2.95 |
|
PN 16 AOL 20 90 |
16 |
5/8 |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
93 |
3.66 |
54.5 |
2.15 |
|
PN 20 AOL 16 90 |
20 |
3/4 |
15.0 X 2.0 |
32 |
1.26 |
M 26 X 1.5 |
93.5 |
3.68 |
66 |
2.60 |
|
PN 20 AOL 90 |
20 |
3/4 |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
99.5 |
3.92 |
54.5 |
2.15 |
|
PN 20 AOL 90 L60 |
20 |
3/4 |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
109 |
4.29 |
60 |
2.36 |
|
PN 20 AOL 90 L75 |
20 |
3/4 |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
111 |
4.37 |
75 |
2.95 |
|
PN 20 AOL90L100 |
20 |
3/4 |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
109 |
4.29 |
100 |
3.94 |
|
PN 20 AOL90L120 |
20 |
3/4 |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
111 |
4.37 |
120 |
4.72 |
|
PN 20 AOL 25 90 |
20 |
3/4 |
26.0 X 2.0 |
41 |
1.61 |
M 36 X 2.0 |
119 |
4.69 |
66 |
2.60 |
|
PN 25 AOL 20 90 |
25 |
1’’ |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
106.5 |
4.19 |
66 |
2.60 |
|
PN 25 AOL 90 |
25 |
1’’ |
26.0 X 2.0 |
41 |
1.61 |
M 36 X 2.0 |
127 |
5.00 |
66 |
2.60 |
|
PN 25 AOL 90 L72 |
25 |
1’’ |
26.0 X 2.0 |
41 |
1.61 |
M 36 X 2.0 |
125 |
4.92 |
72 |
2.83 |
|
PN 25 AOL90L100 |
25 |
1’’ |
26.0 X 2.0 |
41 |
1.61 |
M 36 X 2.0 |
125 |
4.92 |
100 |
3.94 |
|
PN 25 AOL90L150 |
25 |
1’’ |
26.0 X 2.0 |
41 |
1.61 |
M 36 X 2.0 |
125 |
4.92 |
150 |
5.91 |
|
PN 25 AOL 32 90 |
25 |
1’’ |
32.0 X 2.5 |
50 |
1.97 |
M 45 X 2.0 |
142.5 |
5.61 |
82 |
3.23 |
|
PN 32 AOL 25 90 |
32 |
1-1/4 |
26.0 X 2.0 |
41 |
1.61 |
M 36 X 2.0 |
135 |
5.31 |
82 |
3.23 |
|
PN 32 AOL 90 |
32 |
1-1/4 |
32.0 X 2.5 |
50 |
1.97 |
M 45 X 2.0 |
151.5 |
5.96 |
82 |
3.23 |
|
PN 32 AOL 90 L98 |
32 |
1-1/4 |
32.0 X 2.5 |
50 |
1.97 |
M 45 X 2.0 |
144 |
5.67 |
98 |
3.86 |
|
PN 32 AOL 40 90 |
32 |
1-1/4 |
38.0 X 2.5 |
60 |
2.36 |
M 52 X 2.0 |
173 |
6.81 |
95 |
3.74 |
|
PN 40 AOL 32 90 |
40 |
1-1/2 |
32.0 X 2.5 |
50 |
1.97 |
M 45 X 2.0 |
154 |
6.06 |
95 |
3.74 |
|
PN 40 AOL 90 |
40 |
1-1/2 |
38.0 X 2.5 |
60 |
2.36 |
M 52 X 2.0 |
176.5 |
6.95 |
95 |
3.74 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
||||||||||
Modèles disponibles
| Code | grandeur |
|---|---|
| PN04AOL0690 | 3/16 |
| PN04AOL0890 | 3/16 |
| PN04AOL90 | 3/16 |
| PN06AOL0490 | 1/4 |
| PN06AOL0890 | 1/4 |
| PN06AOL0890L60 | 1/4 |
| PN06AOL1090 | 1/4 |
| PN06AOL90 | 1/4 |
| PN06AOL90L50 | 1/4 |
| PN06AOL90L55 | 1/4 |
| PN08AOL0690 | 5/16 |
| PN08AOL1090 | 5/16 |
| PN08AOL90 | 5/16 |
| PN08AOL90L36 | 5/16 |
| PN08AOL90L42 | 5/16 |
| PN10AOL0890 | 3/8 |
| PN10AOL1390 | 3/8 |
| PN10AOL90 | 3/8 |
| PN10AOL90L50 | 3/8 |
| PN10AOL90L60 | 3/8 |
| PN10AOL90L70 | 3/8 |
| PN10AOL90L75 | 3/8 |
| PN13AOL1090 | 1/2 |
| PN13AOL1690 | 1/2 |
| PN13AOL90 | 1/2 |
| PN13AOL90L60 | 1/2 |
| PN13AOL90L77 | 1/2 |
| PN16AOL1390 | 5/8 |
| PN16AOL2090 | 5/8 |
| PN16AOL90 | 5/8 |
| PN16AOL90L60 | 5/8 |
| PN16AOL90L75 | 5/8 |
| PN20AOL1690 | 3/4 |
| PN20AOL2590 | 3/4 |
| PN20AOL90 | 3/4 |
| PN20AOL90L100 | 3/4 |
| PN20AOL90L120 | 3/4 |
| PN20AOL90L60 | 3/4 |
| PN20AOL90L75 | 3/4 |
| PN25AOL2090 | 1 |
| PN25AOL3290 | 1 |
| PN25AOL90 | 1 |
| PN25AOL90L100 | 1 |
| PN25AOL90L150 | 1 |
| PN25AOL90L72 | 1 |
| PN32AOL2590 | 1-1/4 |
| PN32AOL4090 | 1-1/4 |
| PN32AOL90 | 1-1/4 |
| PN32AOL90L98 | 1-1/4 |
| PN40AOL3290 | 1-1/2 |
| PN40AOL90 | 1-1/2 |
