Filet métrique DIN S

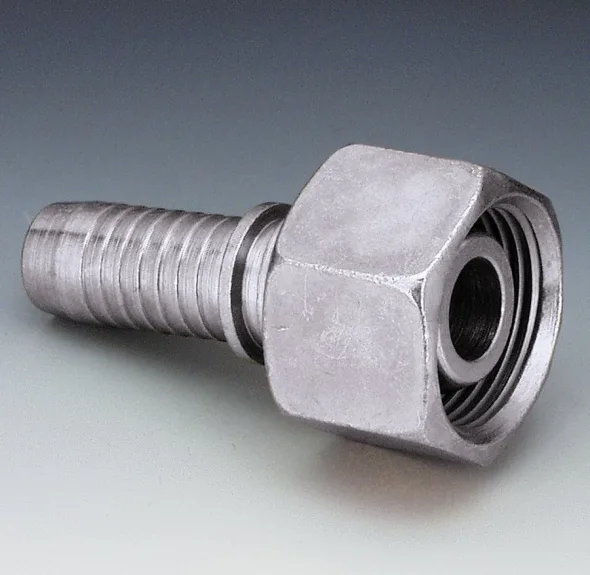

RACCORD FEM MÉTRIQUE 06S X 1 / 4"
Code de groupe de produit: PN06AOS03
PN AOS (Femelle DIN S + O’ring)
|
# produit
|
Diamètre embout (DN) |
Dimension du Joint Torique (O’ring) |
Diamètre extérieur clef (S1) |
Filetage
(G1) |
Longueur Raccord (L1) |
|||
|
Code |
mm |
Po |
mm |
mm |
Po |
Métrique |
mm |
Po |
|
PN 04 AOS |
4 |
3/16 |
6.0 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
47.5 |
1.87 |
|
PN 04 AOS 06 |
4 |
3/16 |
7.5 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
48 |
1.89 |
|
PN 06 AOS 03 |
6 |
1/4 |
4.0 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
53 |
2.09 |
|
PN 06 AOS 04 |
6 |
1/4 |
6.0 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
54 |
2.13 |
|
PN 06 AOS |
6 |
1/4 |
7.5 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
55 |
2.17 |
|
PN 06 AOS 08 |
6 |
1/4 |
9.0 X 1.5 |
24 |
0.94 |
M 20 X 1.5 |
55 |
2.17 |
|
PN 08 AOS 06 |
8 |
5/16 |
7.5 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
54 |
2.13 |
|
PN 08 AOS |
8 |
5/16 |
9.0 X 1.5 |
24 |
0.94 |
M 20 X 1.5 |
55 |
2.17 |
|
PN 10 AOS 06 |
10 |
3/8 |
7.5 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
54 |
2.13 |
|
PN 10 AOS 08 |
10 |
3/8 |
9.0 X 1.5 |
24 |
0.94 |
M 20 X 1.5 |
56.5 |
2.22 |
|
PN 10 AOS |
10 |
3/8 |
10.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
60 |
2.36 |
|
PN 10 AOS 13 |
10 |
3/8 |
12.0 X 2.0 |
30 |
1.18 |
M 24 X 1.5 |
61 |
2.40 |
|
PN 13 AOS 10 |
13 |
1/2 |
10.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
56 |
2.20 |
|
PN 13 AOS |
13 |
1/2 |
12.0 X 2.0 |
30 |
1.18 |
M 24 X 1.5 |
61 |
2.40 |
|
PN 13 AOS 16 |
13 |
1/2 |
16.0 X 2.5 |
36 |
1.42 |
M 30 X 2.0 |
66.5 |
2.62 |
|
PN 16 AOS 13 |
16 |
5/8 |
12.0 X 2.0 |
30 |
1.18 |
M 24 X 1.5 |
60.5 |
2.38 |
|
PN 16 AOS |
16 |
5/8 |
16.0 X 2.5 |
36 |
1.42 |
M 30 X 2 |
71 |
2.80 |
|
PN 16 AOS 20 |
16 |
5/8 |
20.0 X 2.5 |
46 |
1.81 |
M 36 X 2 |
74.5 |
2.93 |
|
PN 16 AOS 20 SW41 |
16 |
5/8 |
20.0 X 2.5 |
41 |
1.61 |
M 36 X 2 |
74.5 |
2.93 |
|
PN 20 AOS 16 |
20 |
3/4 |
16.0 X 2.5 |
36 |
1.42 |
M 30 X 2 |
78 |
3.07 |
|
PN 20 AOS |
20 |
3/4 |
20.0 X 2.5 |
46 |
1.81 |
M 36 X 2 |
81 |
3.19 |
|
PN 20 AOS SW41 |
20 |
3/4 |
20.0 X 2.5 |
41 |
1.61 |
M 36 X 2 |
81 |
3.19 |
|
PN 20 AOS 25 |
20 |
3/4 |
25.0 X 2.5 |
50 |
1.97 |
M 42 X 2 |
84 |
3.31 |
|
PN 25 AOS 20 |
25 |
1’’ |
20.0 X 2.5 |
46 |
1.81 |
M 36 X 2 |
89 |
3.50 |
|
PN 25 AOS |
25 |
1’’ |
25.0 X 2.5 |
50 |
1.97 |
M 42 X 2 |
92 |
3.62 |
|
PN 25 AOS 32 |
25 |
1’’ |
33.0 X 2.5 |
60 |
2.36 |
M 52 X 2 |
95.5 |
3.76 |
|
PN 32 AOS 25 |
32 |
1-1/4 |
25.0 X 2.5 |
50 |
1.97 |
M 42 X 2 |
92.5 |
3.64 |
|
PN 32 AOS |
32 |
1-1/4 |
33.0 X 2.5 |
60 |
2.36 |
M 52 X 2 |
104.5 |
4.11 |
|
PN 40 AOS 32 |
40 |
1-1/2 |
33.0 X 2.5 |
60 |
2.36 |
M 52 X 2 |
107 |
4.21 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
||||||||
Modèles disponibles
| Code | grandeur |
|---|---|
| PN04AOS | 3/16 |
| PN04AOS06 | 3/16 |
| PN06AOS | 1/4 |
| PN06AOS03 | 1/4 |
| PN06AOS04 | 1/4 |
| PN06AOS08 | 1/4 |
| PN08AOS | 5/16 |
| PN08AOS06 | 5/16 |
| PN10AOS | 3/8 |
| PN10AOS06 | 3/8 |
| PN10AOS08 | 3/8 |
| PN10AOS13 | 3/8 |
| PN13AOS | 1/2 |
| PN13AOS10 | 1/2 |
| PN13AOS16 | 1/2 |
| PN16AOS | 5/8 |
| PN16AOS13 | 5/8 |
| PN16AOS20 | 5/8 |
| PN16AOS20SW41 | 5/8 |
| PN20AOS | 3/4 |
| PN20AOS16 | 3/4 |
| PN20AOS25 | 3/4 |
| PN20AOSSW41 | 3/4 |
| PN25AOS | 1 |
| PN25AOS20 | 1 |
| PN25AOS32 | 1 |
| PN32AOS | 1-1/4 |
| PN32AOS25 | 1-1/4 |
| PN40AOS32 | 1-1/2 |
