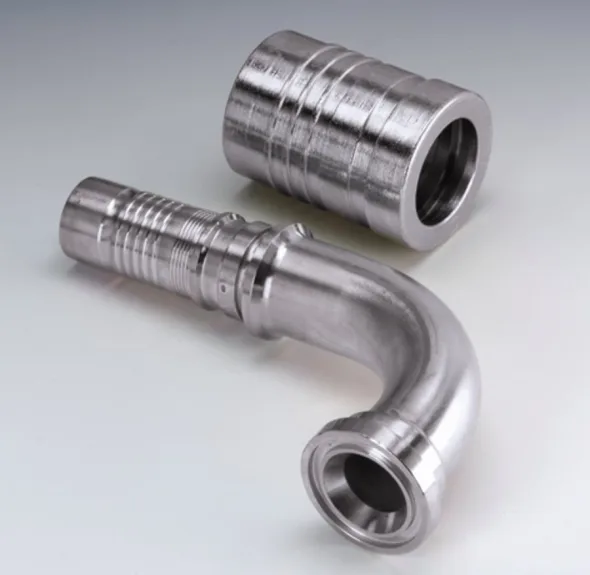

Bride CODE 62
PA 7** SF6 90 (Code 62 90°)
Code de groupe de produit: PA713SF690
PA 7** SF6 90 (Code 62 90°)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur (D) |
Épaisseur Bride (H) |
Longueur Raccord (L1) |
Longueur Portée (L2) |
|||||
|
Code |
mm |
Po |
mm |
Po |
mm |
PO |
mm |
Po |
mm |
Po |
|
PA 713 SF6 90 |
13 |
1/2 |
31.8 |
1.25 |
7.8 |
0.31 |
86 |
3.39 |
46 |
1.81 |
|
PA 713 SF6 20 90 |
13 |
1/2 |
41.3 |
1.63 |
8.8 |
0.35 |
92.5 |
3.64 |
46 |
1.81 |
|
PA 716 SF6 13 90 |
16 |
5/8 |
31.8 |
1.25 |
7.8 |
0.31 |
108 |
4.25 |
48 |
1.89 |
|
PA 716 SF6 20 90 |
16 |
5/8 |
41.3 |
1.63 |
8.8 |
0.35 |
107.5 |
4.23 |
52.5 |
2.07 |
|
PA 716 SF6 25 90 |
16 |
5/8 |
47.6 |
1.87 |
9.6 |
0.38 |
108 |
4.25 |
57 |
2.24 |
|
PA 720 SF6 13 90 L80 |
20 |
3/4 |
31.8 |
1.25 |
7.8 |
0.31 |
117 |
4.61 |
80 |
3.15 |
|
PA 720 SF6 13 90 L100 |
20 |
3/4 |
31.8 |
1.25 |
7.8 |
0.31 |
117 |
4.61 |
100 |
3.94 |
|
PA 720 SF6 90 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
127.5 |
5.02 |
62 |
2.44 |
|
PA 720 SF6 90 L52 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
127.5 |
5.02 |
52 |
2.05 |
|
PA 720 SF6 90 L80 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
127.5 |
5.02 |
80 |
3.15 |
|
PA 720 SF6 90 L85 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
127.5 |
5.02 |
85 |
3.35 |
|
PA 720 SF6 90 L100 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
127.5 |
5.02 |
100 |
3.94 |
|
PA 720 SF6 90 L150 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
127.5 |
5.02 |
150 |
5.91 |
|
PA 720 SF6 25 90 |
20 |
3/4 |
47.6 |
1.87 |
9.6 |
0.38 |
127.5 |
5.02 |
63.5 |
2.50 |
|
PA 720 SF6 32 90 |
20 |
3/4 |
54 |
2.13 |
10.4 |
0.41 |
125 |
4.92 |
69 |
2.72 |
|
PA 725 SF6 20 90 |
25 |
1’’ |
41.3 |
1.63 |
8.8 |
0.35 |
152.5 |
6.00 |
70.5 |
2.78 |
|
PA 725 SF6 90 |
25 |
1’’ |
47.6 |
1.87 |
9.6 |
0.38 |
158 |
6.22 |
74 |
2.91 |
|
PA 725 SF6 90 L100 |
25 |
1’’ |
47.6 |
1.87 |
9.6 |
0.38 |
158 |
6.22 |
100 |
3.94 |
|
PA 725 SF6 90 L200 |
25 |
1’’ |
47.6 |
1.87 |
9.6 |
0.38 |
158 |
6.22 |
200 |
7.87 |
|
PA 725 SF6 32 90 |
25 |
1’’ |
54 |
2.13 |
10.4 |
0.41 |
156 |
6.14 |
83.5 |
3.29 |
|
PA 732 SF6 25 90 |
32 |
1-1/4 |
47.6 |
1.87 |
9.6 |
0.38 |
173 |
6.81 |
95 |
3.74 |
|
PA 732 SF6 90 |
32 |
1-1/4 |
54 |
2.13 |
10.4 |
0.41 |
182 |
7.17 |
93 |
3.66 |
|
PA 732 SF6 90 L120 |
32 |
1-1/4 |
54 |
2.13 |
10.4 |
0.41 |
182 |
7.17 |
120 |
4.72 |
|
PA 732 SF6 40 90 |
32 |
1-1/4 |
63.5 |
2.50 |
12.7 |
0.50 |
182 |
7.17 |
101.5 |
4.00 |
|
PA 740 SF6 32 90 |
40 |
1-1/2 |
54 |
2.13 |
10.4 |
0.41 |
193 |
7.60 |
100 |
3.94 |
|
PA 740 SF6 90 |
40 |
1-1/2 |
63.5 |
2.50 |
12.7 |
0.50 |
213.5 |
8.41 |
110 |
4.33 |
|
PA 740 SF6 50 90 |
40 |
1-1/2 |
79.4 |
3.13 |
12.7 |
0.50 |
213.5 |
8.41 |
126 |
4.96 |
|
PA 750 SF6 90 |
50 |
2’’ |
79.4 |
3.13 |
12.7 |
0.50 |
268 |
10.55 |
138 |
5.43 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
||||||||||
Modèles disponibles
| Code | grandeur |
|---|---|
| PA713SF62090 | 1/2 |
| PA713SF690 | 1/2 |
| PA716SF61390 | 5/8 |
| PA716SF62090 | 5/8 |
| PA716SF62590 | 5/8 |
| PA720SF61390L100 | 3/4 |
| PA720SF61390L80 | 3/4 |
| PA720SF62590 | 3/4 |
| PA720SF63290 | 3/4 |
| PA720SF690 | 3/4 |
| PA720SF690L100 | 3/4 |
| PA720SF690L150 | 3/4 |
| PA720SF690L52 | 3/4 |
| PA720SF690L80 | 3/4 |
| PA720SF690L85 | 3/4 |
| PA725SF62090 | 1 |
| PA725SF63290 | 1 |
| PA725SF690 | 1 |
| PA725SF690L100 | 1 |
| PA725SF690L200 | 1 |
| PA732SF62590 | 1-1/4 |
| PA732SF64090 | 1-1/4 |
| PA732SF690 | 1-1/4 |
| PA732SF690L120 | 1-1/4 |
| PA740SF63290 | 1-1/2 |
| PA740SF65090 | 1-1/2 |
| PA740SF690 | 1-1/2 |
| PA750SF690 | 2 |
