Raccords Série B43 compatible avec boyau 1 & 2 brins

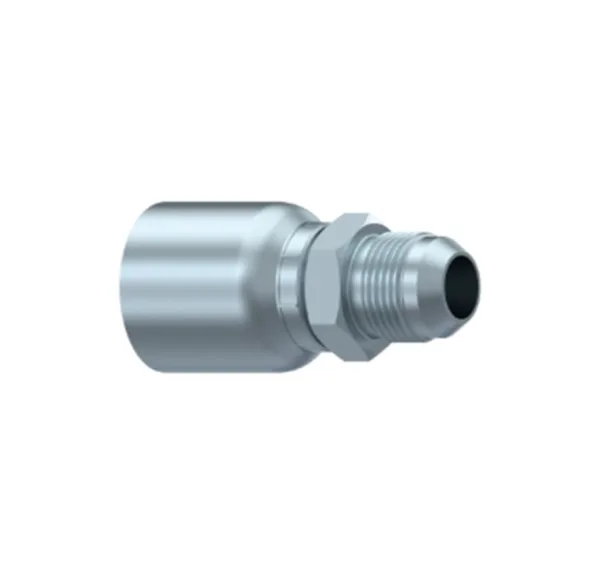

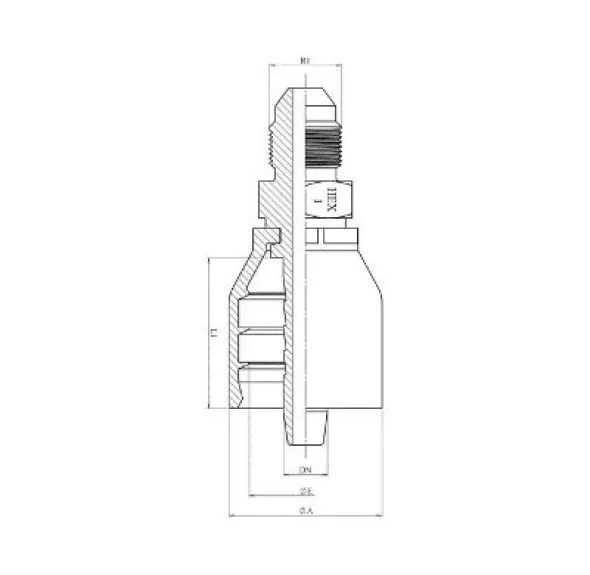

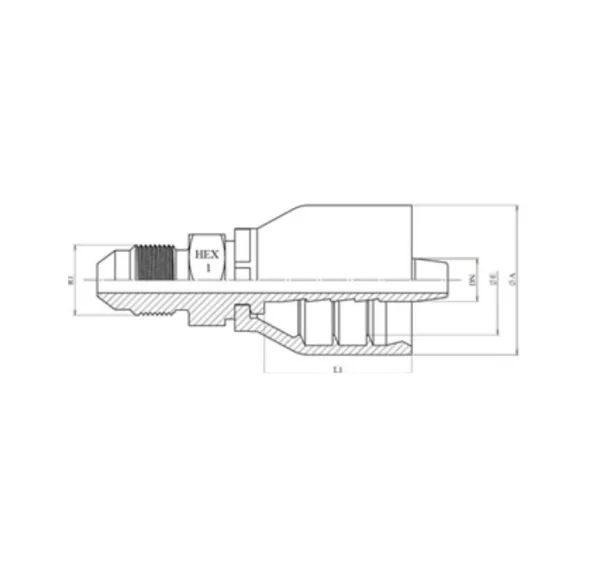

Mâle JIC Série B43
Code de groupe de produit: B43-HJ-04-04
|
# Produit |
Diamètre embout (DN) |
Filetage |
|
|
Code |
mm |
Po |
JIC |
|
B43-HJ-04-04 |
6 |
1/4″ |
7/16″-20 UNF |
|
B43-HJ-04-05 |
6 |
1/4″ |
1/2″-20 UNF |
|
B43-HJ-04-06 |
6 |
1/4″ |
9/16″-18 UNF |
|
B43-HJ-05-05 |
8 |
5/16″ |
1/2″-20 UNF |
|
B43-HJ-05-06 |
8 |
5/16″ |
9/16″-18 UNF |
|
B43-HJ-06-06 |
10 |
3/8″ |
9/16″-18 UNF |
|
B43-HJ-06-08 |
10 |
3/8″ |
3/4″-16 UNF |
|
B43-HJ-06-10 |
10 |
3/8″ |
7/8″-14 UNF |
|
B43-HJ-08-08 |
13 |
1/2″ |
3/4″-16 UNF |
|
B43-HJ-08-10 |
13 |
1/2″ |
7/8″-14 UNF |
|
B43-HJ-08-12 |
13 |
1/2″ |
1-1/16″-12 UNF |
|
B43-HJ-10-10 |
16 |
5/8″ |
7/8″-14 UNF |
|
B43-HJ-10-12 |
16 |
5/8″ |
1-1/16″-12 UNF |
|
B43-HJ-12-12 |
20 |
3/4″ |
1-1/16″-12 UNF |
|
B43-HJ-12-16 |
20 |
3/4″ |
1-5/16″-12 UNF |
|
B43-HJ-16-16 |
25 |
1″ |
1-5/16″-12 UNF |
|
B43-HJ-16-20 |
25 |
1″ |
1-5/8″-12 UNF |
|
B43-HJ-20-20 |
32 |
1-1/4″ |
1-5/8″-12 UNF |
|
B43-HJ-20-24 |
32 |
1-1/4″ |
1-7/8″-12 UNF |
|
B43-HJ-24-24 |
40 |
1-1/2″ |
1-7/8″-12 UN |
|
B43-HJ-32-32 |
50 |
2″ |
2-1/2″-12 UN |
– Boyaux compatibles
– GL-1SN
– GL-2SN
– TG-2SN
– TG-2SC
Modèles disponibles
| Code | grandeur |
|---|---|
| B43-HJ-04-04 | 1/4 |
| B43-HJ-04-05 | 1/4 |
| B43-HJ-04-06 | 1/4 |
| B43-HJ-05-05 | 5/16 |
| B43-HJ-05-06 | 5/16 |
| B43-HJ-06-06 | 3/8 |
| B43-HJ-06-08 | 3/8 |
| B43-HJ-06-10 | 3/8 |
| B43-HJ-08-08 | 1/2 |
| B43-HJ-08-10 | 1/2 |
| B43-HJ-08-12 | 1/2 |
| B43-HJ-10-10 | 5/8 |
| B43-HJ-10-12 | 5/8 |
| B43-HJ-12-12 | 3/4 |
| B43-HJ-12-16 | 3/4 |
| B43-HJ-16-16 | 1 |
| B43-HJ-16-20 | 1 |
| B43-HJ-20-20 | 1-1/4 |
| B43-HJ-20-24 | 1-1/4 |
| B43-HJ-24-24 | 1-1/2 |
| B43-HJ-32-32 | 2 |
