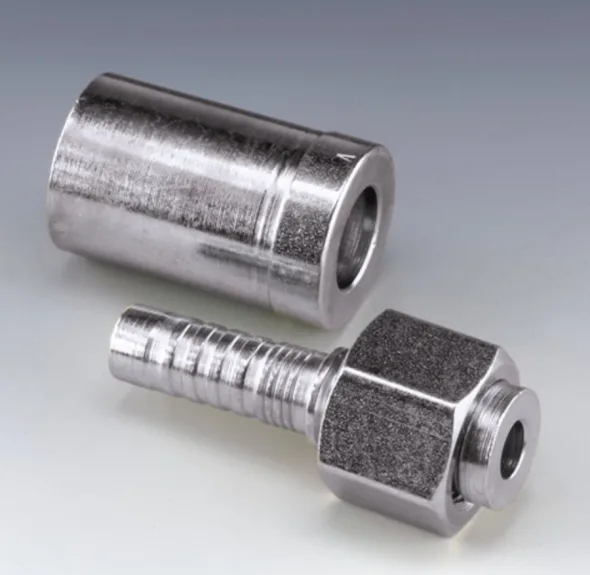

PA 7** AJF (Femelle ORFS)
Product group code: PA713AJF
PA 7** AJF (Femelle ORFS)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur clef (S1) |
Filetage ORFS (G1) |
Longueur Raccord (L1) |
|||
|
Code |
mm |
Po |
mm |
Po |
UNF |
mm |
Po |
|
PA 713 AJF |
13 |
1/2 |
27 |
1.06 |
13/16’’ – 16 UNF |
65.8 |
2.59 |
|
PA 716 AJF |
16 |
5/8 |
30 |
1.18 |
1’’ – 14 UNS |
82 |
3.23 |
|
PA 716 AJF 20 |
16 |
5/8 |
36 |
1.42 |
1-3/16’’ – 12 UN |
82 |
3.23 |
|
PA 720 AJF |
20 |
3/4 |
36 |
1.42 |
1-3/16’’ – 12 UN |
94.5 |
3.72 |
|
PA 720 AJF 25 |
20 |
3/4 |
41 |
1.61 |
1-7/16’’ – 12 UN |
98 |
3.86 |
|
PA 725 AJF |
25 |
1’’ |
41 |
1.61 |
1-7/16’’ – 12 UN |
108.5 |
4.27 |
|
PA 725 AJF 32 |
25 |
1’’ |
50 |
1.97 |
1-11/16’’ – 12 UN |
130 |
5.12 |
|
PA 732 AJF |
32 |
1-1/4 |
50 |
1.97 |
1-11/16’’ – 12 UN |
115.5 |
4.55 |
|
PA 740 AJF |
40 |
1-1/2 |
60 |
2.36 |
2’’ – 12 UN |
127.5 |
5.02 |
Models available
| Code | size |
|---|---|
| PA713AJF | 1/2 |
| PA716AJF | 5/8 |
| PA716AJF20 | 5/8 |
| PA720AJF | 3/4 |
| PA720AJF25 | 3/4 |
| PA725AJF | 1 |
| PA725AJF32 | 1 |
| PA732AJF | 1-1/4 |
| PA740AJF | 1-1/2 |
Code
PA713AJF
size
1/2
Code
PA716AJF
size
5/8
Code
PA716AJF20
size
5/8
Code
PA720AJF
size
3/4
Code
PA720AJF25
size
3/4
Code
PA725AJF
size
1
Code
PA725AJF32
size
1
Code
PA732AJF
size
1-1/4
Code
PA740AJF
size
1-1/2
