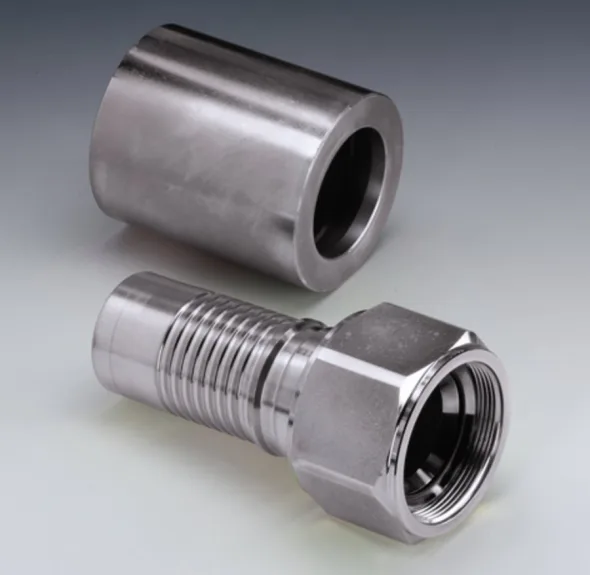

PA 7** AOJ (Femelle JIC avec O-ring)
Product group code: PA720AOJ
PA 7** AOJ (Femelle JIC avec O-ring)
|
# produit
|
Diamètre embout (DN) |
Dimension du Joint Torique (O-ring) |
Diamètre extérieur Clef (S1) |
Filetage UNF (G1) |
Longueur Raccord (L1) |
|||
|
Code |
mm |
Po |
|
mm |
Po |
JIC |
mm |
Po |
|
PA 720 AOJ |
20 |
3/4 |
19.00 X 1.50 |
32 |
1.26 |
1-1/16’’-12 UNF |
90 |
3.54 |
|
PA 725 AOJ |
25 |
1’’ |
25.00 X 1.50 |
41 |
1.61 |
1-5/16’’-12 UNF |
103.5 |
4.07 |
|
PA 732 AOJ |
32 |
1-1/4 |
31.47 X 1.78 |
50 |
1.97 |
1-5/8’’-12 UNF |
115 |
4.53 |
|
PA 740 AOJ |
40 |
1-1/2 |
37.82 X 1.78 |
55 |
2.17 |
1-7/8’’-12 UNF |
132 |
5.20 |
Models available
| Code | size |
|---|---|
| PA720AOJ | 3/4 |
| PA720AOJ25 | 3/4 |
| PA725AOJ | 1 |
| PA725AOJ20 | 1 |
| PA732AOJ | 1-1/4 |
| PA740AOJ | 1-1/2 |
Code
PA720AOJ
size
3/4
Code
PA720AOJ25
size
3/4
Code
PA725AOJ
size
1
Code
PA725AOJ20
size
1
Code
PA732AOJ
size
1-1/4
Code
PA740AOJ
size
1-1/2
