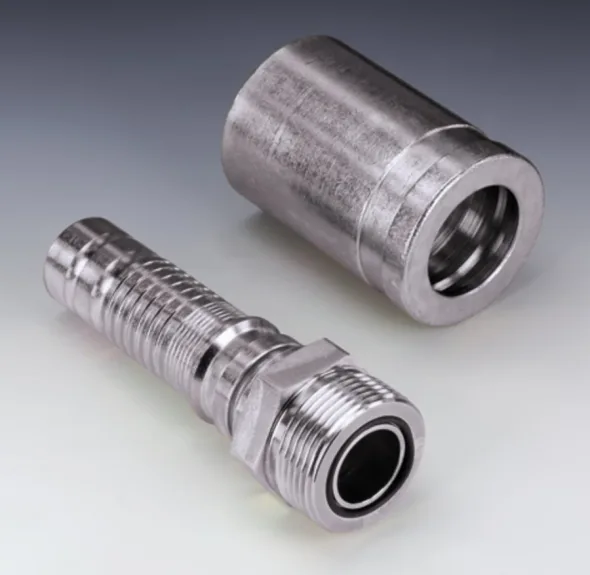

PA 7** HJOF (Mâle ORFS)
Product group code: PA720HJOF
PA 7** HJOF (Mâle ORFS)
|
# produit
|
Diamètre embout (DN) |
Dimension du Joint Torique (O-ring) |
Diamètre extérieur clef (S1) |
Filetage ORFS (G1) |
Longueur Raccord (L1) |
|||
|
Code |
mm |
Po |
mm |
mm |
Po |
UNF |
mm |
Po |
|
PA 720 HJOF |
20 |
3/4 |
18.77 X 1.78 |
32 |
1.26 |
1-3/16’’ – 12 UN |
101 |
3.98 |
|
PA 725 HJOF |
25 |
1’’ |
23.52 X 1.78 |
36 |
1.42 |
1-7/16’’ – 12 UN |
117.5 |
4.63 |
Models available
| Code | size |
|---|---|
| PA720HJOF | 3/4 |
| PA725HJOF | 1 |
Code
PA720HJOF
size
3/4
Code
PA725HJOF
size
1
