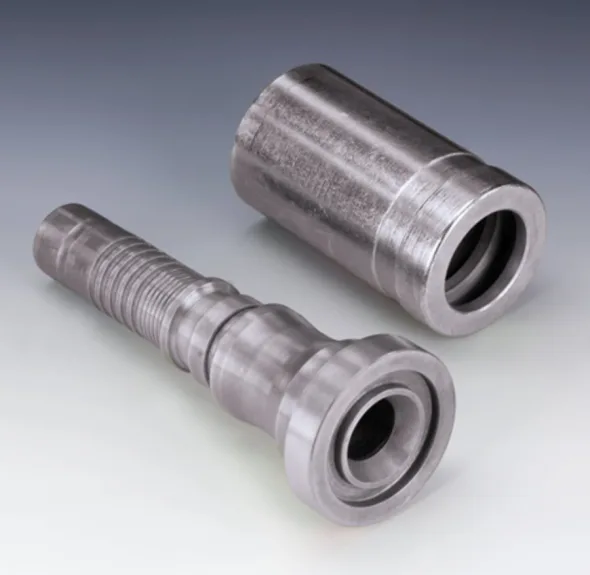

PA 7** SF9 (Code CAT)
Product group code: PA720SF9
PA 7** SF9 (Code CAT)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur Bride (D) |
Épaisseur Bride (H) |
Longueur Raccord (L1) |
||||
|
Code |
mm |
Po |
mm |
Po |
mm |
PO |
mm |
Po |
|
PA 720 SF9 |
20 |
3/4 |
41.3 |
1.63 |
14.6 |
0.57 |
130 |
5.12 |
|
PA 720 SF9 25 |
20 |
3/4 |
47.6 |
1.87 |
14.6 |
0.57 |
133.5 |
5.26 |
|
PA 725 SF9 20 |
25 |
1’’ |
41.3 |
1.63 |
14.6 |
0.57 |
137 |
5.39 |
|
PA 725 SF9 |
25 |
1’’ |
47.6 |
1.87 |
14.6 |
0.57 |
150 |
5.91 |
|
PA 725 SF9 32 |
25 |
1’’ |
54 |
2.13 |
14.6 |
0.57 |
155 |
6.10 |
|
PA 732 SF9 25 |
32 |
1-1/4 |
47.6 |
1.87 |
14.6 |
0.57 |
150 |
5.91 |
|
PA 732 SF9 |
32 |
1-1/4 |
54 |
2.13 |
14.6 |
0.57 |
166.5 |
6.56 |
|
PA 732 SF9 40 |
32 |
1-1/4 |
63.5 |
2.50 |
14.6 |
0.57 |
168.5 |
6.63 |
|
PA 740 SF9 32 |
40 |
1-1/2 |
54 |
2.13 |
14.6 |
0.57 |
163 |
6.42 |
|
PA 740 SF9 |
40 |
1-1/2 |
63.5 |
2.50 |
14.6 |
0.57 |
185 |
7.28 |
Models available
| Code | size |
|---|---|
| PA720SF9 | 3/4 |
| PA720SF925 | 3/4 |
| PA725SF9 | 1 |
| PA725SF920 | 1 |
| PA725SF932 | 1 |
| PA732SF9 | 1-1/4 |
| PA732SF925 | 1-1/4 |
| PA732SF940 | 1-1/4 |
| PA740SF9 | 1-1/2 |
| PA740SF932 | 1-1/2 |
Code
PA720SF9
size
3/4
Code
PA720SF925
size
3/4
Code
PA725SF9
size
1
Code
PA725SF920
size
1
Code
PA725SF932
size
1
Code
PA732SF9
size
1-1/4
Code
PA732SF925
size
1-1/4
Code
PA732SF940
size
1-1/4
Code
PA740SF9
size
1-1/2
Code
PA740SF932
size
1-1/2
