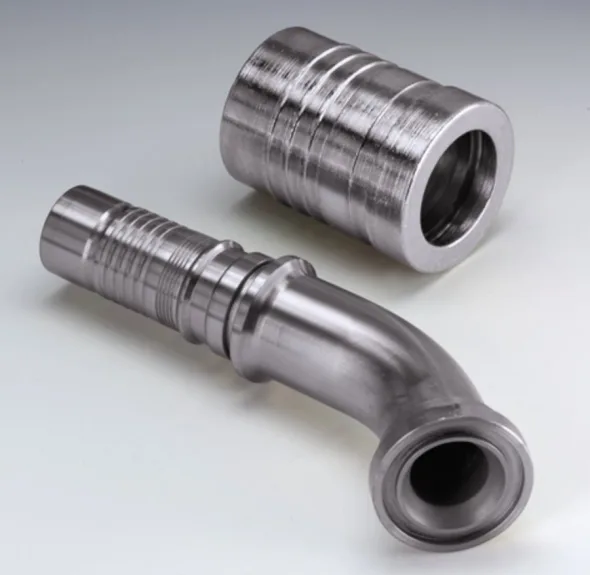

PA SF6 45 (Code 62 45°)
Product group code: PA713SF645
PA SF6 45 (Code 62 45°)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur (D) |
Épaisseur Bride (H) |
Longueur Raccord (L1) |
Longueur Portée (L2) |
|||||
|
Code |
mm |
Po |
mm |
Po |
mm |
PO |
mm |
Po |
mm |
Po |
|
PA 713 SF6 45 |
13 |
1/2 |
31.8 |
1.25 |
7.8 |
0.31 |
95.5 |
3.76 |
23 |
0.91 |
|
PA 713 SF6 20 45 |
13 |
1/2 |
41.3 |
1.63 |
8.8 |
0.35 |
99.9 |
3.93 |
23 |
0.91 |
|
PA 716 SF6 13 45 |
16 |
5/8 |
31.8 |
1.25 |
7.8 |
0.31 |
114 |
4.49 |
21.5 |
0.85 |
|
PA 716 SF6 20 45 |
16 |
5/8 |
41.3 |
1.63 |
8.8 |
0.35 |
117.5 |
4.63 |
25 |
0.98 |
|
PA 716 SF6 25 45 |
16 |
5/8 |
47.6 |
1.87 |
9.6 |
0.38 |
121 |
4.76 |
29 |
1.14 |
|
PA 720 SF6 45 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
135.5 |
5.33 |
30 |
1.18 |
|
PA 720 SF6 45 L52 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
217 |
8.54 |
52 |
2.05 |
|
PA 720 SF6 45 L75 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
252 |
9.92 |
75 |
2.95 |
|
PA 720 SF6 45 L100 |
20 |
3/4 |
41.3 |
1.63 |
8.8 |
0.35 |
268 |
10.55 |
100 |
3.94 |
|
PA 720 SF6 25 45 |
20 |
3/4 |
47.6 |
1.87 |
9.6 |
0.38 |
139.5 |
5.49 |
34.5 |
1.36 |
|
PA 725 SF6 20 45 |
25 |
1’’ |
41.3 |
1.63 |
8.8 |
0.35 |
164 |
6.46 |
36.5 |
1.44 |
|
PA 725 SF6 45 |
25 |
1’’ |
47.6 |
1.87 |
9.6 |
0.38 |
164 |
6.46 |
33.5 |
1.32 |
|
PA 725 SF6 32 45 |
25 |
1’’ |
54 |
2.13 |
10.4 |
0.41 |
169 |
6.65 |
38.5 |
1.52 |
|
PA 732 SF6 25 45 |
32 |
1-1/4 |
47.6 |
1.87 |
9.6 |
0.38 |
175.5 |
6.91 |
38 |
1.50 |
|
PA 732 SF6 45 |
32 |
1-1/4 |
54 |
2.13 |
10.4 |
0.41 |
191 |
7.52 |
41.5 |
1.63 |
|
PA 732 SF6 40 45 |
32 |
1-1/4 |
63.5 |
2.50 |
12.7 |
0.50 |
197 |
7.76 |
47.5 |
1.87 |
|
PA 740 SF6 32 45 |
40 |
1-1/2 |
54 |
2.13 |
10.4 |
0.41 |
217.5 |
8.56 |
51.5 |
2.03 |
|
PA 740 SF6 45 |
40 |
1-1/2 |
63.5 |
2.50 |
12.7 |
0.50 |
222 |
8.74 |
49 |
1.93 |
|
PA 740 SF6 50 45 |
40 |
1-1/2 |
79.4 |
3.13 |
12.7 |
0.50 |
236 |
9.29 |
61 |
2.40 |
|
PA 750 SF6 45 |
50 |
2’’ |
79.4 |
3.13 |
12.7 |
0.50 |
274 |
10.79 |
56 |
2.20 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
||||||||||
Models available
| Code | size |
|---|---|
| PA713SF62045 | 1/2 |
| PA713SF645 | 1/2 |
| PA716SF61345 | 5/8 |
| PA716SF62045 | 5/8 |
| PA716SF62545 | 5/8 |
| PA720SF62545 | 3/4 |
| PA720SF645 | 3/4 |
| PA720SF645L100 | 3/4 |
| PA720SF645L52 | 3/4 |
| PA720SF645L75 | 3/4 |
| PA725SF62045 | 1 |
| PA725SF63245 | 1 |
| PA725SF645 | 1 |
| PA732SF62545 | 1-1/4 |
| PA732SF64045 | 1-1/4 |
| PA732SF645 | 1-1/4 |
| PA740SF63245 | 1-1/2 |
| PA740SF645 | 1-1/2 |
| PA740SF65045 | 1-1/2 |
| PA750SF645 | 2 |
