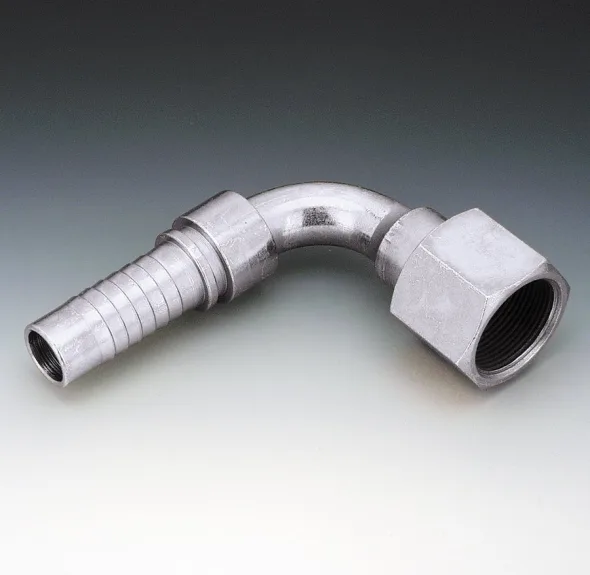

PN ALI 90 (Femelle JIS 90° – KOMATSU)
Product group code: PN06ALI90
PN ALI 90 (Femelle JIS 90° – KOMATSU)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur clef (S1) |
Filetage JIS (G1) |
Longueur Raccord (L1) |
Longueur Portée (L2) |
||||
|
Code |
mm |
Po |
mm |
Po |
Métrique |
mm |
Po |
mm |
Po |
|
PN 06 ALI 90 |
6 |
1/4 |
17 |
0.67 |
M 14 X 1.5 |
63 |
2.48 |
31 |
1.22 |
|
PN 08 ALI 90 |
8 |
5/16 |
19 |
0.75 |
M 16 X 1.5 |
70 |
2.76 |
42 |
1.65 |
|
PN 10 ALI 06 90 |
10 |
3/8 |
19 |
0.75 |
M 14 X 1.5 |
64 |
2.52 |
31 |
1.22 |
|
PN 10 ALI 08 90 |
10 |
3/8 |
22 |
0.87 |
M 16 X 1.5 |
72 |
2.83 |
42 |
1.65 |
|
PN 10 ALI 90 |
10 |
3/8 |
22 |
0.87 |
M 18 X 1.5 |
73 |
2.87 |
42 |
1.65 |
|
PN 10 ALI 13 90 |
10 |
3/8 |
27 |
1.06 |
M 22 X 1.5 |
89 |
3.50 |
58 |
2.28 |
|
PN 13 ALI 90 |
13 |
1/2 |
27 |
1.06 |
M 22 X 1.5 |
88 |
3.46 |
58 |
2.28 |
|
PN 16 ALI 90 |
16 |
5/8 |
30 |
1.18 |
M 24 X 1.5 |
92 |
3.62 |
58 |
2.28 |
|
PN 20 ALI 90 |
20 |
3/4 |
36 |
1.42 |
M 30 X 1.5 |
109 |
4.29 |
67 |
2.64 |
|
PN 25 ALI 90 |
25 |
1’’ |
41 |
1.61 |
M 33 X 1.5 |
118 |
4.65 |
70 |
2.76 |
Models available
| Code | size |
|---|---|
| PN06ALI90 | 1/4 |
| PN08ALI90 | 5/16 |
| PN10ALI0690 | 3/8 |
| PN10ALI0890 | 3/8 |
| PN10ALI1390 | 3/8 |
| PN10ALI90 | 3/8 |
| PN13ALI90 | 1/2 |
| PN16ALI90 | 5/8 |
| PN20ALI90 | 3/4 |
| PN25ALI90 | 1 |
Code
PN06ALI90
size
1/4
Code
PN08ALI90
size
5/16
Code
PN10ALI0690
size
3/8
Code
PN10ALI0890
size
3/8
Code
PN10ALI1390
size
3/8
Code
PN10ALI90
size
3/8
Code
PN13ALI90
size
1/2
Code
PN16ALI90
size
5/8
Code
PN20ALI90
size
3/4
Code
PN25ALI90
size
1
