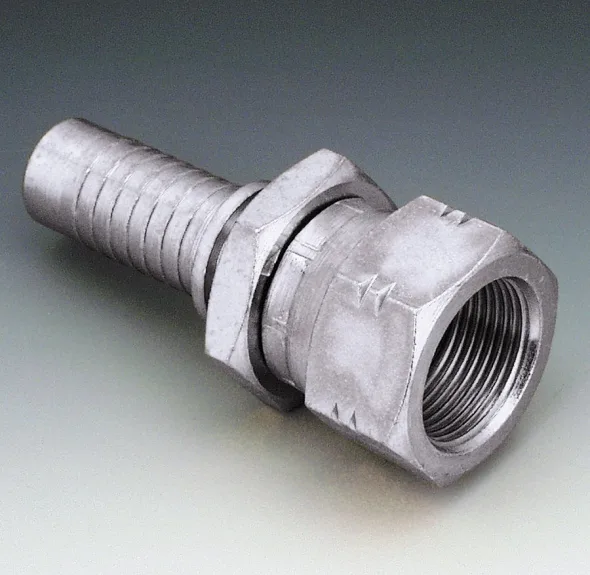

PN ALI (Femelle JIS – KOMATSU)
Product group code: PN06ALI
PN ALI (Femelle JIS – KOMATSU)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur clef (S1) |
Filetage JIS (G1) |
Longueur Raccord (L1) |
|||
|
Code |
mm |
Po |
mm |
Po |
Métrique |
mm |
Po |
|
PN 06 ALI |
6 |
1/4 |
19 |
0.75 |
M 14 X 1.5 |
44 |
1.73 |
|
PN 06 ALI 08 |
6 |
1/4 |
22 |
0.87 |
M 16 X 1.5 |
45 |
1.77 |
|
PN 08 ALI |
8 |
5/16 |
22 |
0.87 |
M 16 X 1.5 |
44 |
1.73 |
|
PN 10 ALI 06 |
10 |
3/8 |
19 |
0.75 |
M 14 X 1.5 |
48 |
1.89 |
|
PN 10 ALI 08 |
10 |
3/8 |
22 |
0.87 |
M 16 X 1.5 |
47.5 |
1.87 |
|
PN 10 ALI |
10 |
3/8 |
24 |
0.94 |
M 18 X 1.5 |
47.8 |
1.88 |
|
PN 13 ALI |
13 |
1/2 |
27 |
1.06 |
M 22 X 1.5 |
50.5 |
1.99 |
|
PN 13 ALI 16 |
13 |
1/2 |
30 |
1.18 |
M 24 X 1.5 |
50.5 |
1.99 |
|
PN 16 ALI |
16 |
5/8 |
30 |
1.18 |
M 24 X 1.5 |
55 |
2.17 |
|
PN 20 ALI |
20 |
3/4 |
36 |
1.42 |
M 30 X 1.5 |
63 |
2.48 |
|
PN 25 ALI |
25 |
1’’ |
41 |
1.61 |
M 33 X 1.5 |
71.6 |
2.82 |
|
PN 32 ALI |
32 |
1-1/4 |
46 |
1.81 |
M 36 X 1.5 |
84 |
3.31 |
|
PN 40 ALI |
40 |
1-1/2 |
50 |
1.97 |
M 42 X 1.5 |
90.5 |
3.56 |
Models available
| Code | size |
|---|---|
| PN06ALI | 1/4 |
| PN06ALI08 | 1/4 |
| PN08ALI | 5/16 |
| PN10ALI | 3/8 |
| PN10ALI06 | 3/8 |
| PN10ALI08 | 3/8 |
| PN13ALI | 1/2 |
| PN13ALI16 | 1/2 |
| PN16ALI | 5/8 |
| PN20ALI | 3/4 |
| PN25ALI | 1 |
| PN32ALI | 1-1/4 |
| PN40ALI | 1-1/2 |
