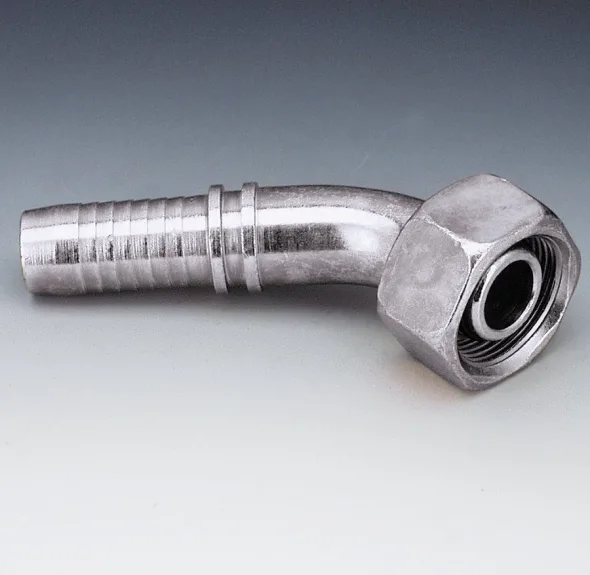

RACCORD 45° FEM MÉTRIQUE 08L X 1 / 4″
Product group code: PN06AOL45
PN AOL 45 (Femelle DIN L 45°+ O’ring)
|
# produit
|
Diamètre embout (DN) |
Dimension du Joint Torique (O’ring) |
Diamètre extérieur clef (S1) |
Filetage
(G1) |
Longueur Raccord (L1) |
Longueur Portée (L2) |
||||
|
Code |
mm |
Po |
mm |
mm |
Po |
Métrique |
mm |
Po |
mm |
Po |
|
PN 04 AOL 45 |
4 |
3/16 |
4.0 X 1.5 |
14 |
0.55 |
M 12 X 1.5 |
56 |
2.20 |
15 |
0.59 |
|
PN 04 AOL 06 45 |
4 |
3/16 |
6.5 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
57 |
2.24 |
15 |
0.59 |
|
PN 04 AOL 08 45 |
4 |
3/16 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
58.5 |
2.30 |
17 |
0.67 |
|
PN 06 AOL 04 45 |
4 |
3/16 |
4.0 X 1.5 |
14 |
0.55 |
M 12 X 1.5 |
62 |
2.44 |
17 |
0.67 |
|
PN 06 AOL 45 |
6 |
1/4 |
6.0 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
63 |
2.48 |
15 |
0.59 |
|
PN 06 AOL 08 45 |
6 |
1/4 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
64.5 |
2.54 |
17 |
0.67 |
|
PN 06 AOL 10 45 |
6 |
1/4 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
71 |
2.80 |
19.5 |
0.77 |
|
PN 08 AOL 06 45 |
6 |
1/4 |
6.0 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
62 |
2.44 |
16.5 |
0.65 |
|
PN 08 AOL 45 |
8 |
5/16 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
66 |
2.60 |
16.5 |
0.65 |
|
PN 08 AOL 10 45 |
8 |
5/16 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
71 |
2.80 |
19.5 |
0.77 |
|
PN 10 AOL 08 45 |
10 |
3/8 |
7.5 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
74 |
2.91 |
22 |
0.87 |
|
PN 10 AOL 45 |
10 |
3/8 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
72.5 |
2.85 |
19.5 |
0.77 |
|
PN 10 AOL 13 45 |
10 |
3/8 |
12.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
80 |
3.15 |
20 |
0.79 |
|
PN 13 AOL 10 45 |
13 |
1/2 |
9.0 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
80 |
3.15 |
24.5 |
0.96 |
|
PN 13 AOL 45 |
13 |
1/2 |
12.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
81 |
3.19 |
20 |
0.79 |
|
PN 13 AOL 16 45 |
13 |
1/2 |
15.0 X 2.0 |
32 |
1.26 |
M 26 X 1.5 |
91.5 |
3.60 |
24.5 |
0.96 |
|
PN 16 AOL 13 45 |
16 |
5/8 |
12.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
84.5 |
3.33 |
24.5 |
0.96 |
|
PN 16 AOL 45 |
16 |
5/8 |
15.0 X 2.0 |
32 |
1.26 |
M 26 X 1.5 |
96 |
3.78 |
24.5 |
0.96 |
|
PN 16 AOL 20 45 |
16 |
5/8 |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
99.5 |
3.92 |
27 |
1.06 |
|
PN 20 AOL 16 45 |
20 |
3/4 |
15.0 X 2.0 |
32 |
1.26 |
M 26 X 1.5 |
101.5 |
4.00 |
27 |
1.06 |
|
PN 20 AOL 45 |
20 |
3/4 |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
106 |
4.17 |
27 |
1.06 |
|
PN 20 AOL 25 45 |
20 |
3/4 |
26.0 X 2.0 |
41 |
1.61 |
M 36 X 2.0 |
124 |
4.88 |
29.5 |
1.16 |
|
PN 25 AOL 20 45 |
25 |
1’’ |
20.0 X 2.0 |
36 |
1.42 |
M 30 X 2.0 |
113 |
4.45 |
29.5 |
1.16 |
|
PN 25 AOL 45 |
25 |
1’’ |
26.0 X 2.0 |
41 |
1.61 |
M 36 X 2.0 |
132 |
5.20 |
29.5 |
1.16 |
|
PN 25 AOL 32 45 |
25 |
1’’ |
32.0 X 2.5 |
50 |
1.97 |
M 45 X 2.0 |
150 |
5.91 |
38.5 |
1.52 |
|
PN 32 AOL 25 45 |
32 |
1-1/4 |
26.0 X 2.0 |
41 |
1.61 |
M 36 X 2.0 |
140 |
5.51 |
38.5 |
1.52 |
|
PN 32 AOL 45 |
32 |
1-1/4 |
32.0 X 2.5 |
50 |
1.97 |
M 45 X 2.0 |
159 |
6.26 |
38.5 |
1.52 |
|
PN 40 AOL 45 |
40 |
1-1/2 |
38.0 X 2.5 |
60 |
2.36 |
M 52 X 2.0 |
181.5 |
7.15 |
42.5 |
1.67 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
||||||||||
Models available
| Code | size |
|---|---|
| PN04AOL0645 | 3/16 |
| PN04AOL0845 | 3/16 |
| PN04AOL45 | 3/16 |
| PN06AOL0445 | 3/16 |
| PN06AOL0845 | 1/4 |
| PN06AOL1045 | 1/4 |
| PN06AOL45 | 1/4 |
| PN08AOL0645 | 1/4 |
| PN08AOL45 | 5/16 |
| PN10AOL0845 | 3/8 |
| PN10AOL1345 | 3/8 |
| PN10AOL45 | 3/8 |
| PN13AOL1045 | 1/2 |
| PN13AOL1645 | 1/2 |
| PN13AOL45 | 1/2 |
| PN16AOL1345 | 5/8 |
| PN16AOL2045 | 5/8 |
| PN16AOL45 | 5/8 |
| PN20AOL1645 | 3/4 |
| PN20AOL2545 | 3/4 |
| PN20AOL45 | 3/4 |
| PN25AOL2045 | 1 |
| PN25AOL3245 | 1 |
| PN25AOL45 | 1 |
| PN32AOL2545 | 1-1/4 |
| PN32AOL45 | 1-1/4 |
| PN40AOL45 | 1-1/2 |
