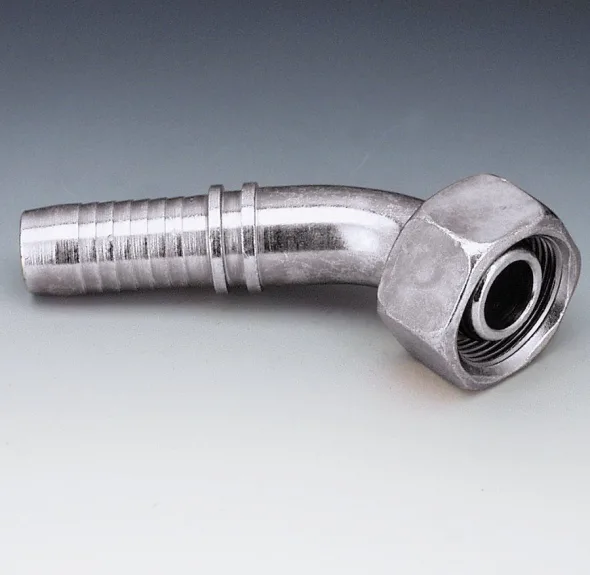

RACCORD 45° FEM MÉTRIQUE 06S X 1 / 4″
Product group code: PN06AOS0345
PN AOS 45 (Femelle DIN S 45° + O’ring)
|
# produit
|
Diamètre embout (DN) |
Dimension du Joint Torique (O’ring) |
Diamètre extérieur clef (S1) |
Filetage
(G1) |
Longueur Raccord (L1) |
Longueur Portée (L2) |
||||
|
Code |
mm |
Po |
mm |
mm |
Po |
Métrique |
mm |
Po |
mm |
Po |
|
PN 04 AOS 45 |
5 |
3/16 |
6.0 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
56.5 |
2.22 |
15.5 |
0.61 |
|
PN 04 AOS 06 45 |
5 |
3/16 |
7.5 X 2.0 |
22 |
0.87 |
M 18 X 1.5 |
58 |
2.28 |
17 |
0.67 |
|
PN 06 AOS 03 45 |
6 |
1/4 |
4.0 X 1.5 |
17 |
0.67 |
M 14 X 1.5 |
64.5 |
2.54 |
16.5 |
0.65 |
|
PN 06 AOS 04 45 |
6 |
1/4 |
6.0 X 1.5 |
19 |
0.75 |
M 16 X 1.5 |
64.5 |
2.54 |
16.5 |
0.65 |
|
PN 06 AOS 45 |
6 |
1/4 |
7.5 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
65 |
2.56 |
17 |
0.67 |
|
PN 06 AOS 08 45 |
6 |
1/4 |
9.0 X 1.5 |
24 |
0.94 |
M 20 X 1.5 |
67.5 |
2.66 |
18 |
0.71 |
|
PN 08 AOS 06 45 |
8 |
5/16 |
7.5 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
64 |
2.52 |
17 |
0.67 |
|
PN 08 AOS 45 |
8 |
5/16 |
9.0 X 1.5 |
24 |
0.94 |
M 20 X 1.5 |
67.5 |
2.66 |
18 |
0.71 |
|
PN 10 AOS 06 45 |
10 |
3/8 |
7.5 X 1.5 |
22 |
0.87 |
M 18 X 1.5 |
72 |
2.83 |
21 |
0.83 |
|
PN 10 AOS 08 45 |
10 |
3/8 |
9.0 X 1.5 |
24 |
0.94 |
M 20 X 1.5 |
73 |
2.87 |
20 |
0.79 |
|
PN 10 AOS 45 |
10 |
3/8 |
10.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
73.5 |
2.89 |
20.5 |
0.81 |
|
PN 10 AOS 13 45 |
10 |
3/8 |
12.0 X 2.0 |
30 |
1.18 |
M 24 X 1.5 |
81 |
3.19 |
21 |
0.83 |
|
PN 13 AOS 10 45 |
13 |
1/2 |
10.0 X 2.0 |
27 |
1.06 |
M 22 X 1.5 |
81 |
3.19 |
27.5 |
1.08 |
|
PN 13 AOS 45 |
13 |
1/2 |
12.0 X 2.0 |
30 |
1.18 |
M 24 X 1.5 |
82 |
3.23 |
21 |
0.83 |
|
PN 16 AOS 13 45 |
16 |
5/8 |
12.0 X 2.0 |
30 |
1.18 |
M 24 X 1.5 |
85.5 |
3.37 |
27.5 |
1.08 |
|
PN 16 AOS 45 |
16 |
5/8 |
16.0 X 2.5 |
36 |
1.42 |
M 30 X 2 |
98.5 |
3.88 |
27.5 |
1.08 |
|
PN 16 AOS 20 45 |
16 |
5/8 |
20.0 X 2.5 |
46 |
1.81 |
M 36 X 2.0 |
103 |
4.06 |
30.5 |
1.20 |
|
PN 20 AOS 16 45 |
20 |
3/4 |
16.0 X 2.5 |
36 |
1.42 |
M 30 X 2 |
109 |
4.29 |
30 |
1.18 |
|
PN 20 AOS 45 |
20 |
3/4 |
20.0 X 2.5 |
46 |
1.81 |
M 36 X 2 |
109.5 |
4.31 |
30.5 |
1.20 |
|
PN 20 AOS 45 SW41 |
20 |
3/4 |
20.0 X 2.5 |
41 |
1.61 |
M 36 X 2 |
109.5 |
4.31 |
30.5 |
1.20 |
|
PN 25 AOS 20 45 |
25 |
1’’ |
20.0 X 2.5 |
46 |
1.81 |
M 36 X 2 |
141.5 |
5.57 |
39.5 |
1.56 |
|
PN 25 AOS 45 |
25 |
1’’ |
25.0 X 2.5 |
50 |
1.97 |
M 42 X 2 |
135.5 |
5.33 |
33 |
1.30 |
|
PN 32 AOS 45 |
32 |
1-1/4 |
33.0 X 2.5 |
60 |
2.36 |
M 52 X 2 |
161.5 |
6.36 |
40.5 |
1.59 |
|
PN 40 AOS 32 45 |
40 |
1-1/2 |
33.0 X 2.5 |
60 |
2.36 |
M 52 X 2 |
165 |
6.50 |
40.5 |
1.59 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
||||||||||
Models available
| Code | size |
|---|---|
| PN04AOS0645 | 3/16 |
| PN04AOS45 | 3/16 |
| PN06AOS0345 | 1/4 |
| PN06AOS0445 | 1/4 |
| PN06AOS0845 | 1/4 |
| PN06AOS45 | 1/4 |
| PN08AOS0645 | 5/16 |
| PN08AOS45 | 5/16 |
| PN10AOS0645 | 3/8 |
| PN10AOS0845 | 3/8 |
| PN10AOS1345 | 3/8 |
| PN10AOS45 | 3/8 |
| PN13AOS1045 | 1/2 |
| PN13AOS45 | 1/2 |
| PN16AOS1345 | 5/8 |
| PN16AOS2045 | 5/8 |
| PN16AOS45 | 5/8 |
| PN20AOS1645 | 3/4 |
| PN20AOS45 | 3/4 |
| PN20AOS45SW41 | 3/4 |
| PN25AOS2045 | 1 |
| PN25AOS45 | 1 |
| PN32AOS45 | 1-1/4 |
| PN40AOS3245 | 1-1/2 |
