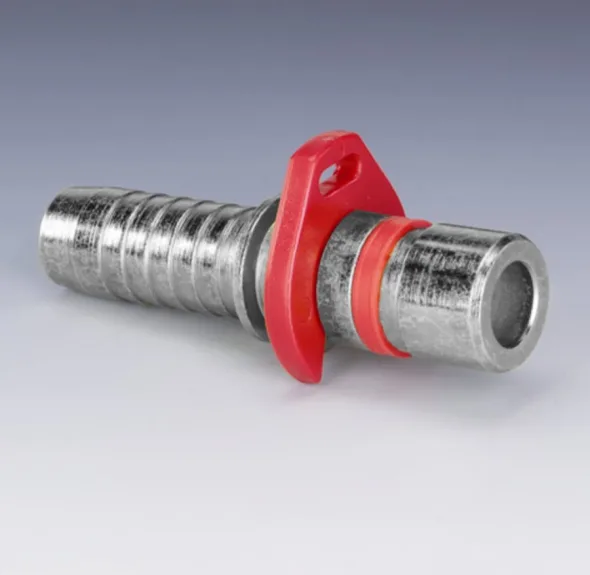

RACCORD MÂLE WEO 10MM X 1 / 4″
Product group code: PN06WEO10S
PN WEO S (WEO)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur (D1) |
Gabarit
|
Longueur Raccord (L1) |
|||
|
Code |
mm |
Po |
mm |
Po |
WEO |
mm |
Po |
|
PN 04 WEO 10 S |
4 |
3/16 |
10 |
0.39 |
3/16 |
54.5 |
2.15 |
|
PN 06 WEO 10 S |
6 |
1/4 |
10 |
0.39 |
1/4 |
58 |
2.28 |
|
PN 06 WEO 13 S |
6 |
1/4 |
13 |
0.51 |
3/8 |
61 |
2.40 |
|
PN 08 WEO 13 S |
8 |
5/16 |
13 |
0.51 |
3/8 |
61.9 |
2.44 |
|
PN 10 WEO 13 S |
10 |
3/8 |
13 |
0.51 |
3/8 |
63 |
2.48 |
|
PN 10 WEO 16 S |
10 |
3/8 |
16 |
0.63 |
1/2 |
63 |
2.48 |
|
PN 13 WEO 16 S |
13 |
1/2 |
16 |
0.63 |
1/2 |
64 |
2.52 |
|
PN 13 WEO 23 S |
13 |
1/2 |
23 |
0.91 |
3/4 |
73.5 |
2.89 |
|
PN 16 WEO 23 S |
16 |
5/8 |
23 |
0.91 |
3/4 |
77.5 |
3.05 |
|
PN 20 WEO 23 S |
20 |
3/4 |
23 |
0.91 |
3/4 |
82 |
3.23 |
|
PN 25 WEO 30 S |
25 |
1’’ |
30 |
1.18 |
1’’ |
100.5 |
3.96 |
Models available
| Code | size |
|---|---|
| PN04WEO10S | 3/16 |
| PN06WEO10S | 1/4 |
| PN06WEO13S | 1/4 |
| PN08WEO13S | 5/16 |
| PN10WEO13S | 3/8 |
| PN10WEO16S | 3/8 |
| PN13WEO16S | 1/2 |
| PN13WEO23S | 1/2 |
| PN16WEO23S | 5/8 |
| PN20WEO23S | 3/4 |
| PN25WEO30S | 1 |
Code
PN04WEO10S
size
3/16
Code
PN06WEO10S
size
1/4
Code
PN06WEO13S
size
1/4
Code
PN08WEO13S
size
5/16
Code
PN10WEO13S
size
3/8
Code
PN10WEO16S
size
3/8
Code
PN13WEO16S
size
1/2
Code
PN13WEO23S
size
1/2
Code
PN16WEO23S
size
5/8
Code
PN20WEO23S
size
3/4
Code
PN25WEO30S
size
1
