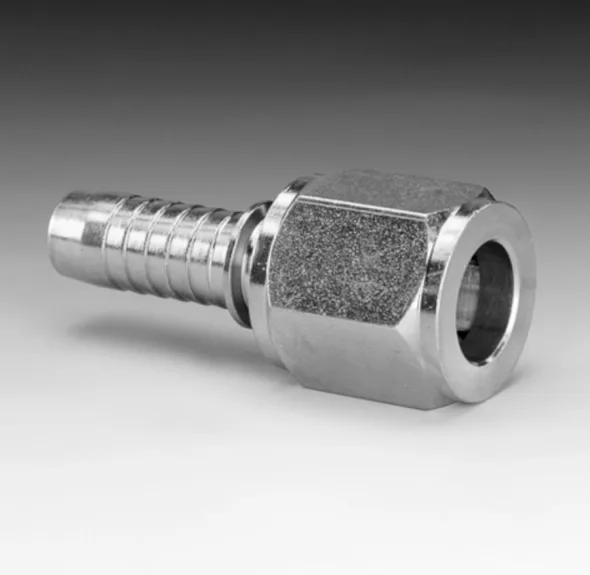

PN WEO SB (WEO)
Product group code: PN06WEO10SB
PN WEO SB (WEO)
|
# produit
|
Diamètre embout (DN)
|
Diamètre extérieur clef (S1) |
Diamètre extérieur (D1) |
Gabarit
|
Longueur Raccord (L1) |
||||
|
Code |
mm |
Po |
mm |
Po |
mm |
Po |
WEO |
mm |
Po |
|
PN 06 WEO 10 SB |
6 |
1/4 |
19 |
0.75 |
10 |
0.39 |
1/4 |
62 |
2.44 |
|
PN 10 WEO 13 SB |
10 |
3/8 |
22 |
0.87 |
13 |
0.51 |
3/8 |
66 |
2.60 |
|
PN 13 WEO 16 SB |
13 |
1/2 |
27 |
1.06 |
16 |
0.63 |
1/2 |
67 |
2.64 |
|
PN 20 WEO 23 SB |
20 |
3/4 |
32 |
1.26 |
23 |
0.91 |
3/4 |
87 |
3.43 |
|
PN 25 WEO 30 SB |
25 |
1’’ |
41 |
1.61 |
30 |
1.18 |
1’’ |
105 |
4.13 |
Models available
| Code | size |
|---|---|
| PN06WEO10SB | 1/4 |
| PN10WEO13SB | 3/8 |
| PN13WEO16SB | 1/2 |
| PN20WEO23SB | 3/4 |
| PN25WEO30SB | 1 |
Code
PN06WEO10SB
size
1/4
Code
PN10WEO13SB
size
3/8
Code
PN13WEO16SB
size
1/2
Code
PN20WEO23SB
size
3/4
Code
PN25WEO30SB
size
1
