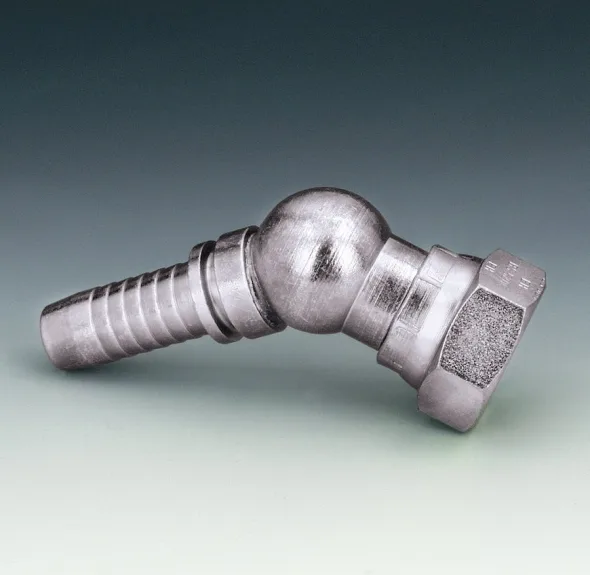

RACCORD 45° COMPACT FEM BSPP CÔNE 60° 1 / 4″ X 1 / 4″
Product group code: PN06ABK45
PN ABK 45 (Femelle BSPP cône 60°, angle 45°)
|
# produit |
Diamètre embout (DN) |
Diamètre extérieur Clef (S1) |
Filetage Iso 8434-6 (G1) |
Longueur Raccord (L1) |
Longueur Portée (L2) |
||||
|
Code |
mm |
Po |
mm |
Po |
BSPP |
mm |
Po |
mm |
PO |
|
PN 06 ABK 45 |
6 |
1/4 |
19 |
0.75 |
G 1/4’’-19 |
65 |
2.56 |
12 |
0.75 |
|
PN 10 ABK 45 |
10 |
3/8 |
22 |
0.87 |
G 3/8’’-19 |
60 |
2.36 |
19 |
0.87 |
|
PN 13 ABK 45 |
13 |
1/2 |
27 |
1.06 |
G 1/2’’-14 |
74 |
2.91 |
15 |
1.06 |
|
PN 16 ABK 45 |
16 |
5/8 |
30 |
1.18 |
G 5/8’’-14 |
83 |
3.27 |
19 |
0.75 |
|
PN 20 ABK 45 |
20 |
3/4 |
32 |
1.26 |
G 3/4’’-14 |
97.5 |
3.84 |
22.5 |
0.89 |
|
PN 25 ABK 45 |
25 |
1’’ |
38 |
1.50 |
G 1’’-11 |
117.5 |
4.63 |
22.5 |
0.89 |
Models available
| Code | size |
|---|---|
| PN06ABK45 | 1/4 |
| PN10ABK45 | 3/8 |
| PN13ABK45 | 1/2 |
| PN16ABK45 | 5/8 |
| PN20ABK45 | 3/4 |
| PN25ABK45 | 1 |
Code
PN06ABK45
size
1/4
Code
PN10ABK45
size
3/8
Code
PN13ABK45
size
1/2
Code
PN16ABK45
size
5/8
Code
PN20ABK45
size
3/4
Code
PN25ABK45
size
1
