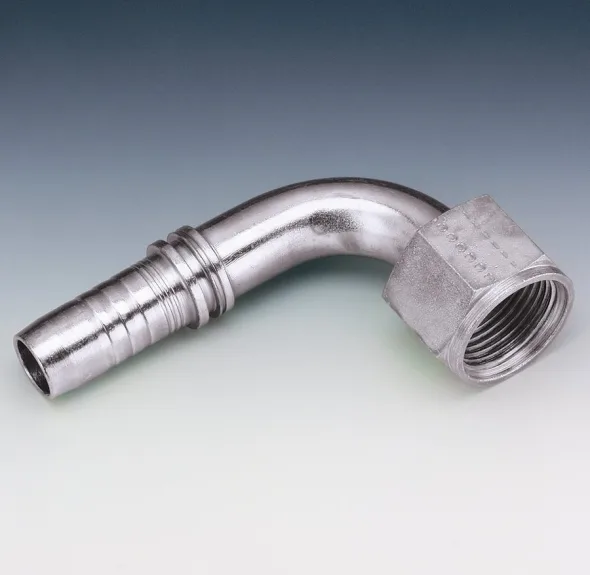

RACCORD 90° FEM JIC 1 / 4″ X 1 / 4″
Product group code: PN06AJ90
PN AJ 90 (Femelle JIC 90°)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur clef (S1) |
Filetage UNF (G1) |
Longueur Raccord (L1) |
Longueur Portée (L2) |
||||
|
Code |
mm |
Po |
mm |
Po |
JIC |
mm |
Po |
mm |
Po |
|
PN 04 AJ 06 90 |
5 |
3/16 |
14 |
0.55 |
7/16’’-20 UNF |
47.5 |
1.87 |
26 |
1.02 |
|
PN 06 AJ 90 |
6 |
1/4 |
14 |
0.55 |
7/16’’-20 UNF |
57 |
2.24 |
26 |
1.02 |
|
PN 06 AJ 08 90 |
6 |
1/4 |
17 |
0.67 |
1/2’’-20 UNF |
57 |
2.24 |
27 |
1.06 |
|
PN 06 AJ 10 90 |
6 |
1/4 |
19 |
0.75 |
9/16’’-18 UNF |
57 |
2.24 |
28 |
1.10 |
|
PN 08 AJ 90 |
8 |
5/16 |
17 |
0.67 |
1/2’’-20 UNF |
56.5 |
2.22 |
33 |
1.30 |
|
PN 08 AJ 10 90 |
8 |
5/16 |
19 |
0.75 |
9/16’’-18 UNF |
57.5 |
2.26 |
30.5 |
1.20 |
|
PN 10 AJ 08 90 |
10 |
3/8 |
17 |
0.67 |
1/2’’-20 UNF |
66.5 |
2.62 |
37.5 |
1.48 |
|
PN 10 AJ 90 |
10 |
3/8 |
19 |
0.75 |
9/16’’-18 UNF |
63 |
2.48 |
35 |
1.38 |
|
PN 10 AJ 13 90 |
10 |
3/8 |
24 |
0.94 |
3/4’’-16 UNF |
63 |
2.48 |
37 |
1.46 |
|
PN 10 AJ 16 90 |
10 |
3/8 |
27 |
1.06 |
7/8’’-14 UNF |
63 |
2.48 |
38 |
1.50 |
|
PN 13 AJ 90 |
13 |
1/2 |
24 |
0.94 |
3/4’’-16 UNF |
71.5 |
2.81 |
42.5 |
1.67 |
|
PN 13 AJ 16 90 |
13 |
1/2 |
27 |
1.06 |
7/8’’-14 UNF |
71.5 |
2.81 |
43.5 |
1.71 |
|
PN 13 AJ 20 90 |
13 |
1/2 |
32 |
1.26 |
1-1/16’’-12 UNF |
71.5 |
2.81 |
45 |
1.77 |
|
PN 16 AJ 90 |
16 |
5/8 |
27 |
1.06 |
7/8’’-14 UNF |
87 |
3.43 |
54 |
2.13 |
|
PN 16 AJ 20 90 |
16 |
5/8 |
32 |
1.26 |
1-1/16’’-12 UNF |
87 |
3.43 |
54.5 |
2.15 |
|
PN 16 AJ 20 90 L105 |
16 |
5/8 |
32 |
1.26 |
1-1/16’’-12 UNF |
87 |
3.43 |
105 |
4.13 |
|
PN 20 AJ 14 90 |
20 |
3/4 |
36 |
1.42 |
1-3/16’’-12 UNF |
108.5 |
4.27 |
69.5 |
2.74 |
|
PN 20 AJ 90 |
20 |
3/4 |
32 |
1.26 |
1-1/16’’-12 UNF |
99 |
3.90 |
57.5 |
2.26 |
|
PN 20 AJ 90 L100 |
20 |
3/4 |
32 |
1.26 |
1-1/16’’-12 UNF |
99 |
3.90 |
100 |
3.94 |
|
PN 20 AJ 25 90 |
20 |
3/4 |
41 |
1.61 |
1-5/16’’-12 UNF |
99 |
3.90 |
58.5 |
2.30 |
|
PN 25 AJ 14 90 |
25 |
1’’ |
36 |
1.42 |
1-3/16’’-12 UNF |
108.5 |
4.27 |
69.5 |
2.74 |
|
PN 25 AJ 90 |
25 |
1’’ |
41 |
1.61 |
1-5/16’’-12 UNF |
126 |
4.96 |
70.5 |
2.78 |
|
PN 25 AJ 32 90 |
25 |
1’’ |
50 |
1.97 |
1-5/8’’-12 UNF |
126 |
4.96 |
72.5 |
2.85 |
|
PN 32 AJ 90 |
32 |
1-1/4 |
50 |
1.97 |
1-5/8’’-12 UNF |
150.5 |
5.93 |
86 |
3.39 |
|
PN 32 AJ 40 90 |
32 |
1-1/4 |
60 |
2.36 |
1-7/8’’-12 UNF |
150.5 |
5.93 |
87 |
3.43 |
|
PN 40 AJ 90 |
40 |
1-1/2 |
60 |
2.36 |
1-7/8’’-12 UNF |
175.5 |
6.91 |
100.5 |
3.96 |
|
PN 50 AJ 90 |
50 |
2’’ |
75 |
2.95 |
2-1/2’’-12 UNF |
216.5 |
8.52 |
135 |
5.31 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
|||||||||
Models available
| Code | size |
|---|---|
| PN04AJ0690 | 3/16 |
| PN06AJ0890 | 1/4 |
| PN06AJ1090 | 1/4 |
| PN06AJ90 | 1/4 |
| PN08AJ1090 | 5/16 |
| PN08AJ90 | 5/16 |
| PN10AJ0890 | 3/8 |
| PN10AJ1390 | 3/8 |
| PN10AJ1690 | 3/8 |
| PN10AJ90 | 3/8 |
| PN13AJ1690 | 1/2 |
| PN13AJ2090 | 1/2 |
| PN13AJ90 | 1/2 |
| PN16AJ2090 | 5/8 |
| PN16AJ2090L105 | 5/8 |
| PN16AJ90 | 5/8 |
| PN20AJ1490 | 3/4 |
| PN20AJ2590 | 3/4 |
| PN20AJ90 | 3/4 |
| PN20AJ90L100 | 3/4 |
| PN25AJ1490 | 1 |
| PN25AJ3290 | 1 |
| PN25AJ90 | 1 |
| PN32AJ4090 | 1-1/4 |
| PN32AJ90 | 1-1/4 |
| PN40AJ90 | 1-1/2 |
| PN50AJ90 | 2 |
