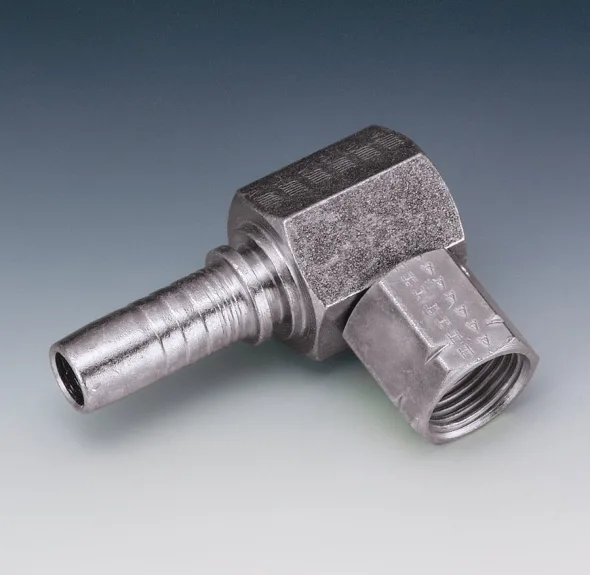

RACCORD 90° FEM JIC COMPACT 1 / 4″ X 1 / 4″
Product group code: PN06AJK90
PN AJK 90 (Femelle JIC 90° compact)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur clef (S1) |
Filetage UNF (G1) |
Longueur Raccord (L1) |
Longueur Portée (L2) |
||||
|
Code |
mm |
Po |
mm |
Po |
JIC |
mm |
Po |
mm |
Po |
|
PN 06 AJK 90 |
6 |
1/4 |
14 |
0.55 |
7/16’’-20 UNF |
50 |
1.97 |
17 |
0.67 |
|
PN 06 AJK 08 90 |
6 |
1/4 |
17 |
0.67 |
1/2’’-20 UNF |
51.1 |
2.01 |
19 |
0.75 |
|
PN 06 AJK 10 90 |
6 |
1/4 |
19 |
0.75 |
9/16’’-18 UNF |
53.5 |
2.11 |
20 |
0.79 |
|
PN 08 AJK 10 90 |
8 |
5/16 |
19 |
0.75 |
9/16’’-18 UNF |
54 |
2.13 |
20 |
0.79 |
|
PN 10 AJK 90 |
10 |
3/8 |
19 |
0.75 |
9/16’’-18 UNF |
55.5 |
2.19 |
20 |
0.79 |
|
PN 10 AJK 13 90 |
10 |
3/8 |
24 |
0.94 |
3/4’’-16 UNF |
57.6 |
2.27 |
21 |
0.83 |
|
PN 13 AJK 90 |
13 |
1/2 |
24 |
0.94 |
3/4’’-16 UNF |
59.6 |
2.35 |
21 |
0.83 |
|
PN 13 AJK 16 90 |
13 |
1/2 |
27 |
1.06 |
7/8’’-14 UNF |
59.6 |
2.35 |
25 |
0.98 |
|
PN 16 AJK 90 |
16 |
5/8 |
27 |
1.06 |
7/8’’-14 UNF |
64.1 |
2.52 |
25 |
0.98 |
|
PN 16 AJK 20 90 |
16 |
5/8 |
32 |
1.26 |
1-1/16’’-12 UNF |
69.8 |
2.75 |
28 |
1.10 |
|
PN 20 AJK 90 |
20 |
3/4 |
32 |
1.26 |
1-1/16’’-12 UNF |
74.8 |
2.94 |
28 |
1.10 |
|
PN 25 AJK 90 |
25 |
1’’ |
41 |
1.61 |
1-5/16’’-12 UNF |
92.2 |
3.63 |
34 |
1.34 |
Models available
| Code | size |
|---|---|
| PN06AJK0890 | 1/4 |
| PN06AJK1090 | 1/4 |
| PN06AJK90 | 1/4 |
| PN08AJK1090 | 5/16 |
| PN10AJK1390 | 3/8 |
| PN10AJK90 | 3/8 |
| PN13AJK1690 | 1/2 |
| PN13AJK90 | 1/2 |
| PN16AJK2090 | 5/8 |
| PN16AJK90 | 5/8 |
| PN20AJK90 | 3/4 |
| PN25AJK90 | 1 |
