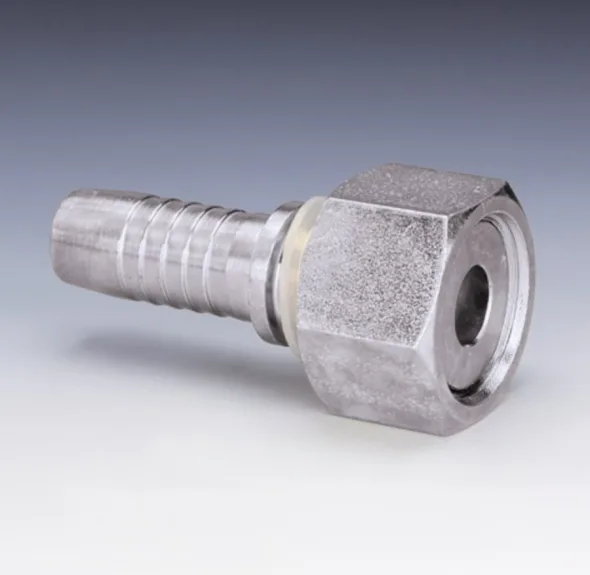

PN AR (Femelle BSPP plat) (Hiab)
Product group code: PN06AR02
PN AR (Femelle BSPP plat) (Hiab)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur Clef (S1) |
Filetage Iso 8434-6 (G1) |
Longueur Raccord (L1) |
|||
|
Code |
mm |
Po |
mm |
Po |
BSPP |
mm |
Po |
|
PN 06 AR 02 |
6 |
1/4 |
14 |
0.55 |
G 1/8’’-28 |
43 |
1.69 |
|
PN 06 AR |
6 |
1/4 |
19 |
0.75 |
G 1/4’’-19 |
43.5 |
1.71 |
|
PN 06 AR 10 |
6 |
1/4 |
22 |
0.87 |
G 3/8’’-19 |
44.5 |
1.75 |
|
PN 08 AR 06 |
8 |
5/16 |
19 |
0.75 |
G 1/4’’-19 |
44 |
1.73 |
|
PN 08 AR 10 |
8 |
5/16 |
22 |
0.87 |
G 3/8’’-19 |
44.5 |
1.75 |
|
PN 08 AR 13 |
8 |
5/16 |
27 |
1.06 |
G 1/2’’-14 |
46.5 |
1.83 |
|
PN 10 AR 06 |
10 |
3/8 |
19 |
0.75 |
G 1/4’’-19 |
46 |
1.81 |
|
PN 10 AR |
10 |
3/8 |
22 |
0.87 |
G 3/8’’-19 |
47 |
1.85 |
|
PN 10 AR 13 |
10 |
3/8 |
27 |
1.06 |
G 1/2’’-14 |
48 |
1.89 |
|
PN 13 AR 10 |
13 |
1/2 |
22 |
0.87 |
G 3/8’’-19 |
48.5 |
1.91 |
|
PN 13 AR |
13 |
1/2 |
27 |
1.06 |
G 1/2’’-14 |
50 |
1.97 |
|
PN 13 AR 16 |
13 |
1/2 |
30 |
1.18 |
G 5/8’’-14 |
49.5 |
1.95 |
|
PN 13 AR 20 |
13 |
1/2 |
32 |
1.26 |
G 3/4’’-14 |
49.5 |
1.95 |
|
PN 16 AR |
16 |
5/8 |
30 |
1.18 |
G 5/8’’-14 |
55 |
2.17 |
|
PN 16 AR 20 |
16 |
5/8 |
32 |
1.26 |
G 3/4’’-14 |
54 |
2.13 |
|
PN 16 AR 25 |
16 |
5/8 |
41 |
1.61 |
G 1’’-11 |
56.5 |
2.22 |
|
PN 20 AR |
20 |
3/4 |
32 |
1.26 |
G 3/4’’-14 |
61.5 |
2.42 |
|
PN 20 AR 25 |
20 |
3/4 |
41 |
1.61 |
G 1’’-11 |
63 |
2.48 |
|
PN 20 AR 32 |
20 |
3/4 |
50 |
1.97 |
G 1-1/4’’-11 |
66.5 |
2.62 |
|
PN 25 AR |
25 |
1’’ |
38 |
1.50 |
G 1’’-11 |
72 |
2.83 |
|
PN 25 AR 32 |
25 |
1’’ |
50 |
1.97 |
G 1-1/4’’-11 |
74.5 |
2.93 |
|
PN 32 AR |
32 |
1-1/4 |
50 |
1.97 |
G 1-1/4’’-11 |
84.5 |
3.33 |
|
PN 40 AR |
40 |
1-1/2 |
55 |
2.17 |
G 1-1/2’’-11 |
88 |
3.46 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
|||||||
Models available
| Code | size |
|---|---|
| PN06AR | 1/4 |
| PN06AR02 | 1/4 |
| PN06AR10 | 1/4 |
| PN08AR06 | 5/16 |
| PN08AR10 | 5/16 |
| PN08AR13 | 5/16 |
| PN10AR | 3/8 |
| PN10AR06 | 3/8 |
| PN10AR13 | 3/8 |
| PN13AR | 1/2 |
| PN13AR10 | 1/2 |
| PN13AR16 | 1/2 |
| PN13AR20 | 1/2 |
| PN16AR | 5/8 |
| PN16AR20 | 5/8 |
| PN16AR25 | 5/8 |
| PN20AR | 3/4 |
| PN20AR25 | 3/4 |
| PN20AR32 | 3/4 |
| PN25AR | 1 |
| PN25AR32 | 1 |
| PN32AR | 1-1/4 |
| PN40AR | 1-1/2 |
