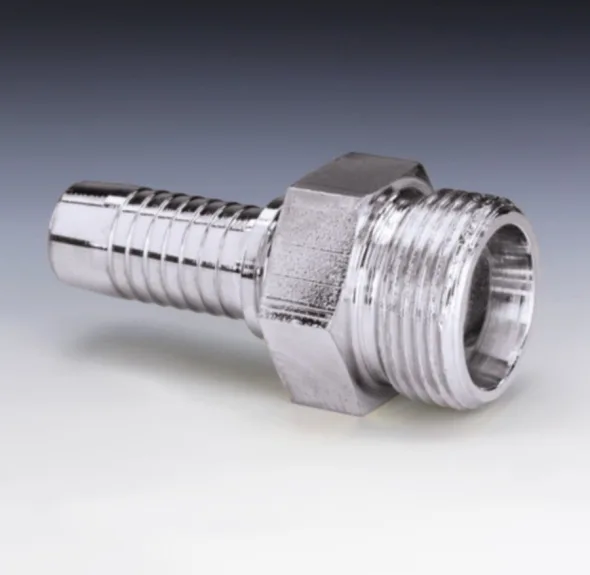

RACCORD MÂLE MÉTRIQUE 06L X 1 / 4″
Product group code: PN06HL04
PN HL (Mâle DIN L)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur clef (S1) |
Filetage (G1) |
Longueur Raccord (L1) |
|||
|
Code |
mm |
Po |
mm |
Po |
métrique |
mm |
Po |
|
PN 04 HL |
5 |
3/16 |
14 |
0.55 |
M 12 X 1.5 |
43 |
1.69 |
|
PN 06 HL 04 |
6 |
1/4 |
14 |
0.55 |
M 12 X 1.5 |
49 |
1.93 |
|
PN 06 HL |
6 |
1/4 |
17 |
0.67 |
M 14 X 1.5 |
49 |
1.93 |
|
PN 06 HL 08 |
6 |
1/4 |
17 |
0.67 |
M 16 X 1.5 |
50 |
1.97 |
|
PN 06 HL 10 |
6 |
1/4 |
19 |
0.75 |
M 18 X 1.5 |
51 |
2.01 |
|
PN 08 HL 06 |
8 |
5/16 |
17 |
0.67 |
M 14 X 1.5 |
49 |
1.93 |
|
PN 08 HL |
8 |
5/16 |
17 |
0.67 |
M 16 X 1.5 |
50 |
1.97 |
|
PN 08 HL 10 |
8 |
5/16 |
19 |
0.75 |
M 18 X 1.5 |
51 |
2.01 |
|
PN 08 HL 13 |
8 |
5/16 |
24 |
0.94 |
M 22 X 1.5 |
52 |
2.05 |
|
PN 10 HL 08 |
10 |
3/8 |
17 |
0.67 |
M 16 X 1.5 |
52.5 |
2.07 |
|
PN 10 HL |
10 |
3/8 |
19 |
0.75 |
M 18 X 1.5 |
52.5 |
2.07 |
|
PN 10 HL 13 |
10 |
3/8 |
24 |
0.94 |
M 22 X 1.5 |
53.5 |
2.11 |
|
PN 13 HL 10 |
13 |
1/2 |
22 |
0.87 |
M 18 X 1.5 |
53.5 |
2.11 |
|
PN 13 HL |
13 |
1/2 |
24 |
0.94 |
M 22 X 1.5 |
54.5 |
2.15 |
|
PN 13 HL 16 |
13 |
1/2 |
27 |
1.06 |
M 26 X 1.5 |
55.5 |
2.19 |
|
PN 16 HL 13 |
16 |
5/8 |
24 |
0.94 |
M 22 X 1.5 |
59 |
2.32 |
|
PN 16 HL |
16 |
5/8 |
27 |
1.06 |
M 26 X 1.5 |
60 |
2.36 |
|
PN 16 HL 20 |
16 |
5/8 |
32 |
1.26 |
M 30 X 2 |
62 |
2.44 |
|
PN 20 HL 16 |
20 |
3/4 |
27 |
1.06 |
M 26 X 1.5 |
66.5 |
2.62 |
|
PN 20 HL |
20 |
3/4 |
32 |
1.26 |
M 30 X 2 |
68.5 |
2.70 |
|
PN 20 HL 25 |
20 |
3/4 |
41 |
1.61 |
M 36 X 2 |
70 |
2.76 |
|
PN 25 HL |
25 |
1’’ |
41 |
1.61 |
M 36 X 2 |
77.5 |
3.05 |
|
PN 32 HL |
32 |
1-1/4 |
46 |
1.81 |
M 45 X 2 |
91 |
3.58 |
|
PN 40 HL |
40 |
1-1/2 |
55 |
2.17 |
M 52 X 2 |
95.5 |
3.76 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
|||||||
Models available
| Code | size |
|---|---|
| PN04HL | 3/16 |
| PN06HL | 1/4 |
| PN06HL04 | 1/4 |
| PN06HL08 | 1/4 |
| PN06HL10 | 1/4 |
| PN08HL | 5/16 |
| PN08HL06 | 5/16 |
| PN08HL10 | 5/16 |
| PN08HL13 | 5/16 |
| PN10HL | 3/8 |
| PN10HL08 | 3/8 |
| PN10HL13 | 3/8 |
| PN13HL | 1/2 |
| PN13HL10 | 1/2 |
| PN13HL16 | 1/2 |
| PN16HL | 5/8 |
| PN16HL13 | 5/8 |
| PN16HL20 | 5/8 |
| PN20HL | 3/4 |
| PN20HL16 | 3/4 |
| PN20HL25 | 3/4 |
| PN25HL | 1 |
| PN32HL | 1-1/4 |
| PN40HL | 1-1/2 |
