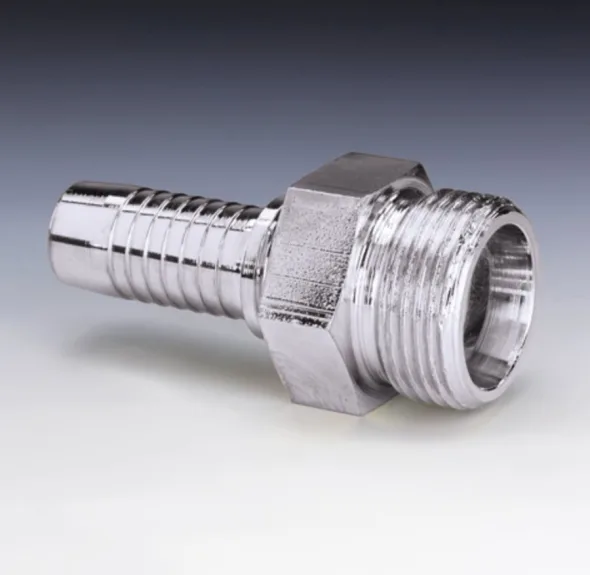

RACCORD MÂLE MÉTRIQUE 06S X 1 / 4″
Product group code: PN06HS03
PN HS (Mâle DIN S)
|
# produit
|
Diamètre embout (DN) |
Diamètre extérieur Clef (S1) |
Filetage (G1) |
Longueur Raccord (L1) |
|||
|
Code |
mm |
Po |
mm |
Po |
métrique |
mm |
Po |
|
PN 04 HS |
4 |
3/16 |
17 |
0.67 |
M 16X 1.5 |
48 |
1.89 |
|
PN 06 HS 03 |
6 |
1/4 |
14 |
0.55 |
M 14 X 1.5 |
52 |
2.05 |
|
PN 06 HS 04 |
6 |
1/4 |
17 |
0.67 |
M 16 X 1.5 |
54 |
2.13 |
|
PN 06 HS |
6 |
1/4 |
19 |
0.75 |
M 18 X 1.5 |
54 |
2.13 |
|
PN 08 HS 06 |
8 |
5/16 |
19 |
0.75 |
M 18 X 1.5 |
54 |
2.13 |
|
PN 08 HS |
8 |
5/16 |
22 |
0.87 |
M 20 X 1.5 |
56 |
2.20 |
|
PN 08 HS 13 |
8 |
5/16 |
27 |
1.06 |
M 24 X 1.5 |
58 |
2.28 |
|
PN 10 HS 06 |
10 |
3/8 |
19 |
0.75 |
M 18 X 1.5 |
55.5 |
2.19 |
|
PN 10 HS 08 |
10 |
3/8 |
22 |
0.87 |
M 20 X 1.5 |
57.5 |
2.26 |
|
PN 10 HS |
10 |
3/8 |
24 |
0.94 |
M 22 X 1.5 |
59.5 |
2.34 |
|
PN 10 HS 13 |
10 |
3/8 |
27 |
1.06 |
M 24 X 1.5 |
59.5 |
2.34 |
|
PN 13 HS 10 |
13 |
1/2 |
24 |
0.94 |
M 22 X 1.5 |
60.5 |
2.38 |
|
PN 13 HS |
13 |
1/2 |
27 |
1.06 |
M 24 X 1.5 |
60.5 |
2.38 |
|
PN 13 HS 16 |
13 |
1/2 |
32 |
1.26 |
M 30 X 2 |
64.5 |
2.54 |
|
PN 16 HS |
16 |
5/8 |
32 |
1.26 |
M 30 X 2 |
69 |
2.72 |
|
PN 20 HS 16 |
20 |
3/4 |
32 |
1.26 |
M 30 X 2 |
75.5 |
2.97 |
|
PN 20 HS |
20 |
3/4 |
36 |
1.42 |
M 36 X 2 |
79.5 |
3.13 |
|
PN 25 HS 20 |
25 |
1’’ |
36 |
1.42 |
M 36 X 2 |
87.5 |
3.44 |
|
PN 25 HS |
25 |
1’’ |
46 |
1.81 |
M 42 X 2 |
89.5 |
3.52 |
|
PN 32 HS |
32 |
1-1/4 |
55 |
2.17 |
M 52 X 2 |
104 |
4.09 |
|
PN 40 HS 32 |
40 |
1-1/2 |
55 |
2.17 |
M 52 X 2 |
107.5 |
4.23 |
|
Plusieurs grandeurs disponibles en acier inox (rajouté ‘’VA’’ au code) |
|||||||
Models available
| Code | size |
|---|---|
| PN04HS | 3/16 |
| PN06HS | 1/4 |
| PN06HS03 | 1/4 |
| PN06HS04 | 1/4 |
| PN08HS | 5/16 |
| PN08HS06 | 5/16 |
| PN08HS13 | 5/16 |
| PN10HS | 3/8 |
| PN10HS06 | 3/8 |
| PN10HS08 | 3/8 |
| PN10HS13 | 3/8 |
| PN13HS | 1/2 |
| PN13HS10 | 1/2 |
| PN13HS16 | 1/2 |
| PN16HS | 5/8 |
| PN20HS | 3/4 |
| PN20HS16 | 3/4 |
| PN25HS | 1 |
| PN25HS20 | 1 |
| PN32HS | 1-1/4 |
| PN40HS32 | 1-1/2 |
